In an automated system, the Human Machine Interface (HMI) is where people and machines meet. It is how operators start equipment, monitor performance, diagnose faults, and keep production moving. When the HMI is poorly chosen, even the best PLC program and hardware can become difficult, inefficient, or unsafe to operate.

Allen-Bradley offers a wide range of HMIs under the PanelView family, each designed for different system sizes, environments, and user needs. Choosing the correct one is not just a hardware decision. It directly impacts usability, reliability, downtime, and long-term cost.

What an Human Machine Interface (HMI) Really Does

An HMI is more than just a touchscreen. It serves as:

• The primary interface for operators
• A diagnostic tool for maintenance personnel
• A communication bridge between PLC logic and human decision-making
• A contributor to safety, efficiency, and uptime

If operators cannot quickly understand what the machine is doing, mistakes increase and downtime becomes more frequent.

Understanding Allen-Bradley HMI Options

AB HMIs are commonly grouped into a few main categories:

• PanelView 800

  • Entry-level HMI designed for small machines and Micro800 PLCs
• PanelView Plus 7

  • Panleview Plus Standard
    • A reliable mid-range HMI used with CompactLogix and ControlLogix systems
  • PanelView Plus 7 Performance

    • Higher processing power and memory for complex applications
• PanelView Plus 1000
  • A newer HMI platform designed specifically for Logix controllers

Above are the more current models of HMI Allen Bradley, whereas below are the obsolete and discontinued models. The obsolete and discontinued AB Panelviews are offered here at Replace and they can help keep your systems running without investing an entirely new infrastructure. The primary differences between the older models is the screen size. Below are some of the most common displays:

• PanelView 600

  • 5-inch color displays with touch, keypad, or both input options. The primary difference in the part numbers is the communication options. Below are a couple examples of the most popular Panelview 600 units.
    • 2711-T6C8L1
      • RS-232 and DH+ communication, touchscreen input only
    • 2711-B6C8
      • RS-232 and DH+ communication, Both touchscreen and keypad input
    • 2711-B6C10
      • RS-232 and DeviceNet communication, both touchscreen and keypad input
• PanelView 550
  • 5.5 Inch color or monochrome displays with touch, keypad, or both input options. The primary difference in the part numbers is the communication options. Below are a couple examples of the most popular Panelview 600 units.
    • 2711-K5A5
      • RS-232 (DH-485) communication, monochrome display and keypad input
    • 2711-B5A9
      • RS-232 (DH-485) communication, monochrome display and keypad & touchscreen input
    • 2711-T5A2L1
      • DH-485 communication, monochrome display and touchscreen input only

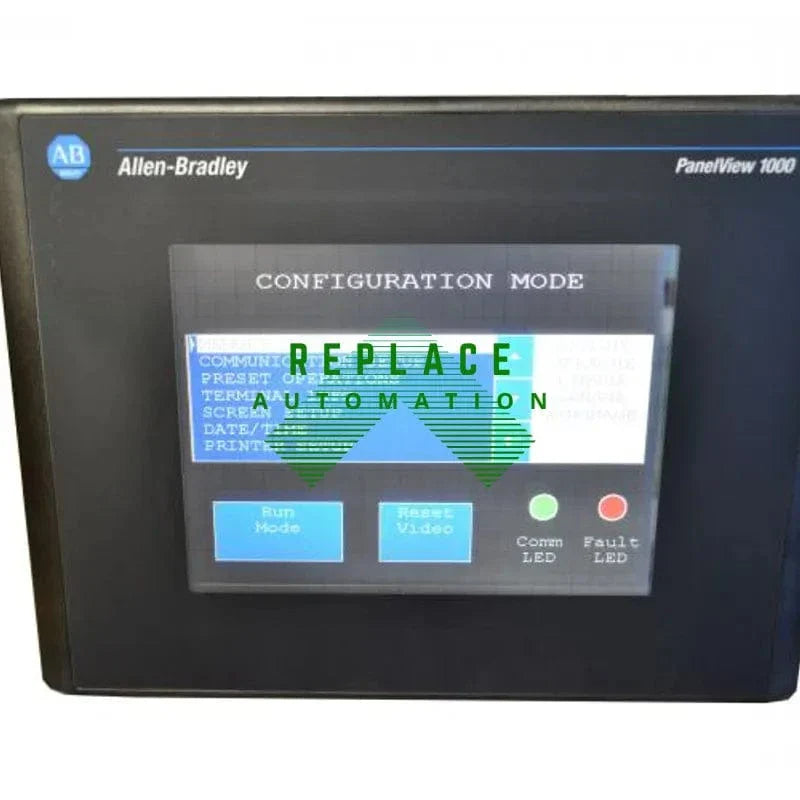

• PanelView 1000
  • 10.1 inch displays available with various communication options and featuring both grayscale and color displays
    • 2711-T10C20
      • RS-232 and ethernet communication, color display and touchscreen input only
    • 2711-K10G8
      • DH+ and RS-232 communication, grayscale display and Keypad only input

Why Picking the Correct HMI Is So Important

1. Performance and Responsiveness

An underpowered HMI can struggle with larger tag databases, alarms, trends, and detailed graphics. This results in slow screen transitions, delayed button responses, and frustrated operators.

Choosing an HMI with sufficient processing power ensures smoother operation and a better overall user experience.

2. Compatibility With Your PLC

Not all Allen-Bradley HMIs integrate the same way with all PLC families.

• PanelView 800 pairs best with Micro800 controllers
• PanelView Plus 7 works seamlessly with CompactLogix and ControlLogix
• PanelView 5000 is designed exclusively for Logix controllers

Using the wrong HMI can increase development time and complicate maintenance.

3. Screen Size and Operator Usability

Screen size affects how efficiently operators interact with the system. A screen that is too small forces excessive navigation, while an oversized HMI on a simple machine adds cost without real benefit.

The correct choice balances clarity, efficiency, and budget.

4. Environmental and Floor Conditions

Factory environments introduce challenges such as dust, vibration, moisture, temperature extremes, and glove operation. Allen-Bradley HMIs are built for industrial use, but selecting a model suited for the specific environment improves longevity and reliability.

5. Software and Long-Term Maintenance

Different PanelView models use different development tools and architectures. Selecting the right HMI can reduce programming time, simplify tag management, and make future changes easier.

This becomes especially important when systems are expected to run for many years.

Real-World Example Using Equipment Available at Replace Industrial NC

A common scenario is a production line controlled by a CompactLogix PLC that requires a reliable, responsive operator interface with alarm handling and multiple process screens. We recently had a customer who owns multiple carwashes, where the operator relied upon the HMI to control the dryer at the end of the carwash. The Panelview through an alarm when the servo motor that controls lowering and raising the blowers malfunctioned, resulting in the dryer being stuck in the raised position. The operator used the touchscreen to quickly stop all operations in the carwash and send a maintenance tech to the motor prior to any damage being incurred to vehicles.

In this case, an Allen-Bradley PanelView Plus 7 is an ideal fit. It provides enough processing power to handle complex graphics and tag counts while maintaining solid compatibility with Logix-based controllers. This model is widely used in manufacturing environments and is readily available through Replace Industrial NC, making it a practical solution for both new installations and replacements.

Using a PanelView Plus 7 in this application avoids over-engineering the system while still delivering strong performance and long-term support.

Choosing the correct Allen-Bradley HMI is not about picking the biggest screen or the newest product. It is about matching the HMI to the machine, the operators, the environment, and the future needs of the system.

The right HMI improves usability, reduces downtime, and simplifies maintenance. The wrong one becomes a daily frustration.

In industrial automation, the HMI is the face of your system. Make sure it is the right one.
