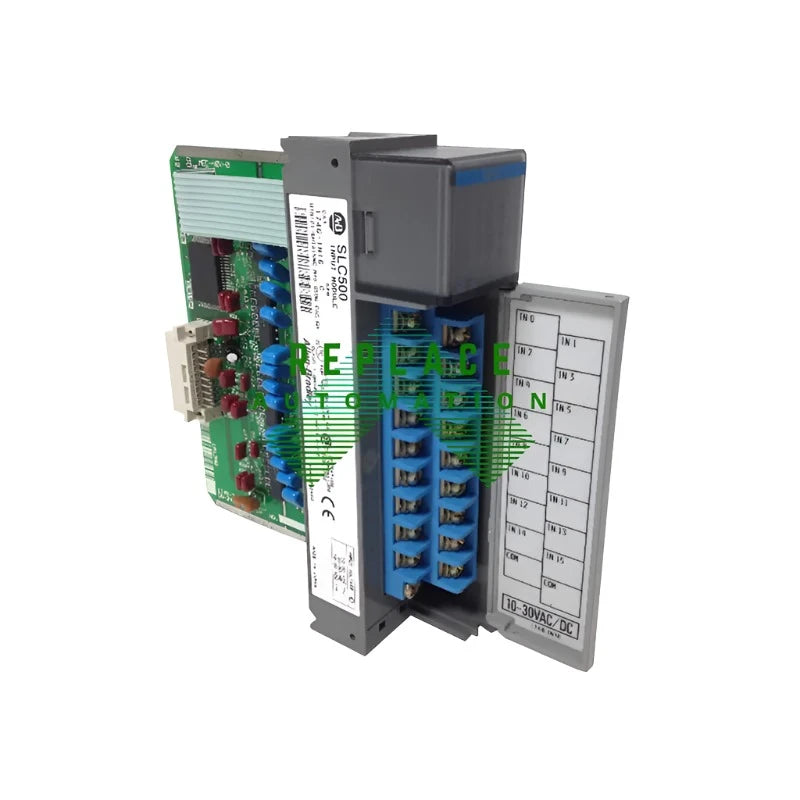

Allen-Bradley 1746-IN16
The Allen-Bradley 1746-IN16 Digital DC Input Module by Industrial Automation enhances SLC 500 system performance, supporting 16 general-purpose 125V DC inputs at 24V AC/DC with a 15ms signal delay for DC and 25ms for AC. It requires 0.085A at 5V DC from the backplane and has a nominal input current of 8mA. UPC: 10662468092743.
| Manufacturer | Industrial Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1746-IN16 |
| Series | SLC 500 |
| Operating Voltage | 24 Volts AC/DC Sink |
| Module Type | Digital DC Input Module |
| Voltage Range | 24 VDC / 24 VAC |
| Inputs | 16 |
| Signal delay | 15 or 25 milliseconds |
| Backplane Current (5 Volts DC) | At 5 Volts DC: 0.085 A; |
| Off State Current | 1 milliamps |
| Signal delay, DC Voltage | 15 ms |
| Applications | General Purpose 125 Volts DC Inputs |
| Signal delay, AC Voltage | 25 ms |
| I/O Connection | 1746-HT and 1746-HCA |
| Nominal Input Current | 8 mA @ 24V DC; 8 mA @ 24V AC |
| Step Response | 100 milliseconds in, 2.5 milliseconds out |
| Watts Per Point | 0.35 |
| UPC | 10662468092743 |
| Minimum Watts | 0.425 |
| Total Watts | 6 |
