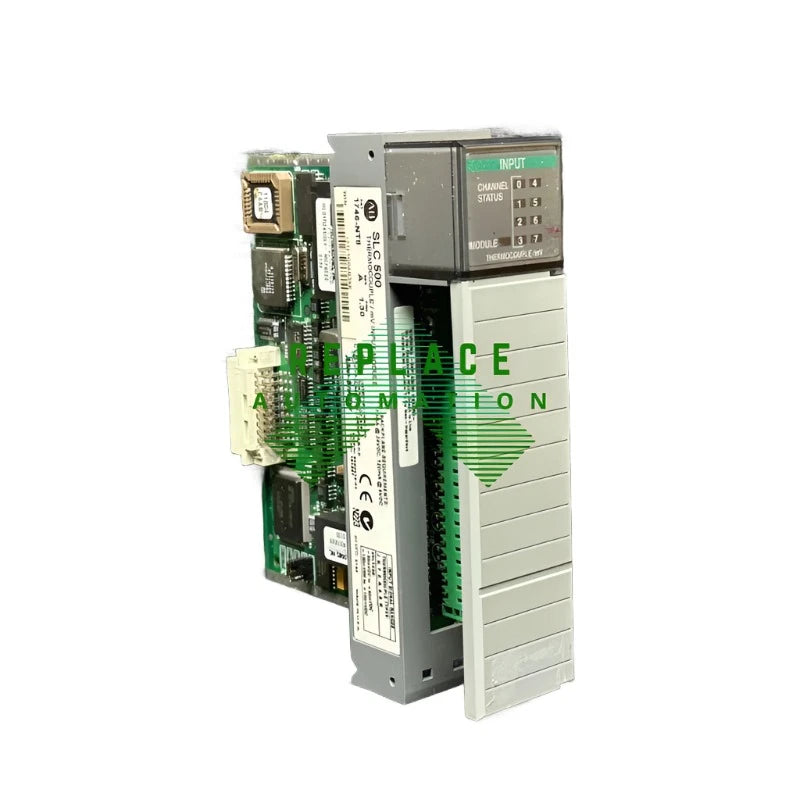

Allen-Bradley 1746-NT8
The Allen-Bradley 1746-NT8 is an SLC 500 series thermocouple/mV analog input module designed by Rockwell Automation with eight input channels. It supports various thermocouple types, including J, K, T, E, S, R, B, and N, featuring a 16-bit resolution and a 356ms-4.05s update time, compatible with +/- 50 mV and +/- 100 mV signals.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1746-NT8 |
| Series | SLC 500 |
| Inputs | 8 |
| Module Type | Thermocouple/mV Analog Input Module |
| Backplane Current (5 Volts) | 120 milliamps |
| No. of Inputs | Eight (8) |
| Backplane Current (24 Volts) | 70 milliamps |
| Compatible Thermocouple Sensors | J, K, T, E, S, R, B and N |
| Update Time | 356 milliseconds-4.05 seconds |
| Compatible miliVolt signal | +/- 50 mV and +/- 100 mV |
| Backplane Current | 120 mA @ 5VDC; 70 mA @ 24VDC |
| Resolution | 16 bits in, 14 bits out |
| Backplane Power Consumption | 2.28W maximum (0.6W at 5V dc, 1.68W at 24V dc) |
| Step Response | 60 milliseconds in, 2.5 milliseconds out |
| Open Circuit Detection | Zero; Upscale; Downscale |
| UPC | 10611320130888 |
| I/O Chassis location | Any slot except Slot 0 |
| Operating Temperature | 0 to 60 degrees Celsius |
| Storage Temperature | -40 to 85 degrees Celsius |
| A/D Conversion method | Sigma-delta modulation |
