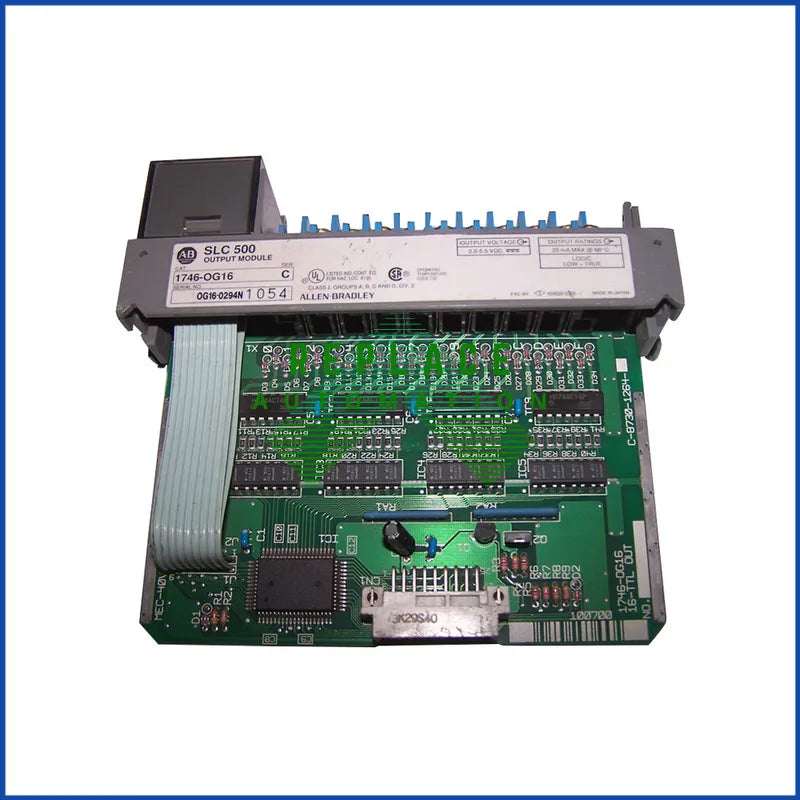

Allen-Bradley 1746-OG16
The Allen-Bradley 1746-OG16 is a digital DC output module from Rockwell Automation's SLC 500 series, offering 16 sink outputs and compatibility with TTL loads. Designed for efficient output signal control, it handles 5V DC, with a 0.024 amps per output current and a rapid step response for reliable performance in industrial applications.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1746-OG16 |
| Series | SLC 500 |
| Module Type | Digital DC Output Module |
| Outputs | 16 |
| Voltage Range | 5 Volts DC Sink |
| Backplane Current (5 Volts) | 180 milliamps |
| Current/Output | 0.024 amps |
| Current/Module | 0.384 amps |
| Applications | TTL Loads, Sink-Load Displays |
| Backplane Current | (5 Volts)180 milliamps |
| Step Response | 60 milliseconds in, 2.5 milliseconds out |
| Signal Delay, ON | On = 0.25 mA |
| Signal Delay. OFF | Off = 0.50 mA |
| Off-state voltage | 4.5...5.5V DC |
| Programming Software | RSLogix 500 |
