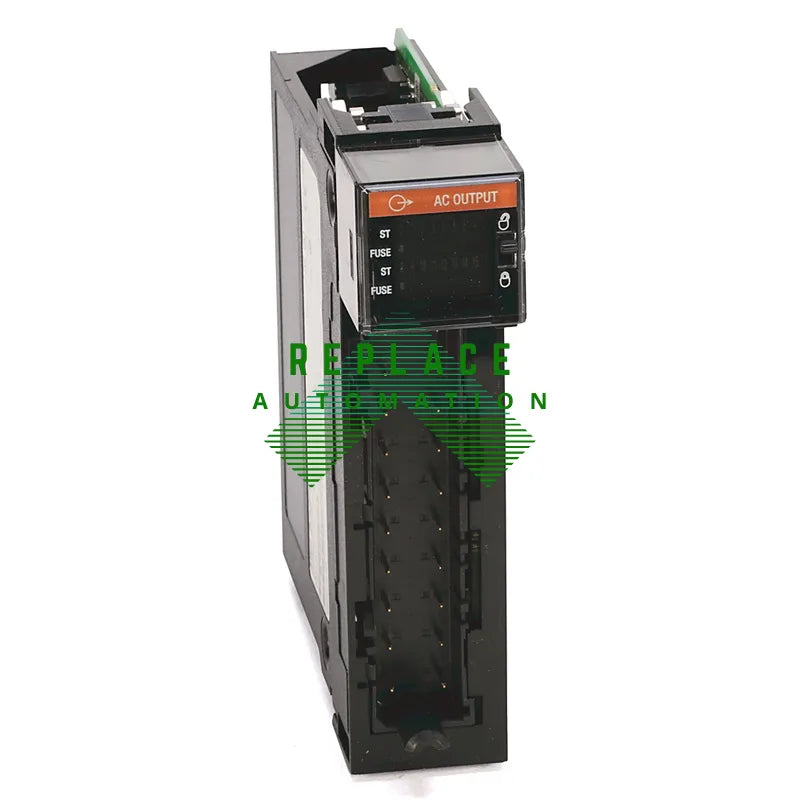

Allen-Bradley 1756-OA16
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Series | ControlLogix |
| Part Number/Catalog No. | 1756-OA16 |
| Outputs | 16-Points |
| Module Type | Digital AC Output Module |
| Voltage | 120-140 Volts AC |
| No. of Outputs | Sixteen (16) mechanically fused |
| Voltage Category | 120 / 240 Volts AC |
| Operating Voltage Range | 74-265 Volts AC |
| Maximum Output Current Rating-Point | 0.5 Amps at 60 degrees Celsius |
| Output Delay Time | Programmable 9.3 or 11 milliseconds |
| Maximum Output Current Rating-Module | 4 Amps at 60 degrees Celsius |
| Current per point | 0.5 A @ 60 °C (140 °F) |
| Removeable Terminal Block(s) | 1756-TBNH, 1756-TBSH |
| Current per module | 4 A @ 60 °C (140 °F) |
| Isolation Voltage | 50 Volts Continuous |
| Backplane Current at 5 Volts | 400 mA |
| Power Dissipation (Max) | 6.5 W @ 60 °C (140 °F) |
| Enclosure | None |
| UPC | 10612598171368 |
| Backplane Current at 24 Volts | 2 mA |
| Removable Terminal Block(s) | 1756-TBCH, 1756-TBSH |
| Programming software | RSLogix 5000 SoftwareVerson 8.02.00 or later; Studio 5000 Logix Designer |
