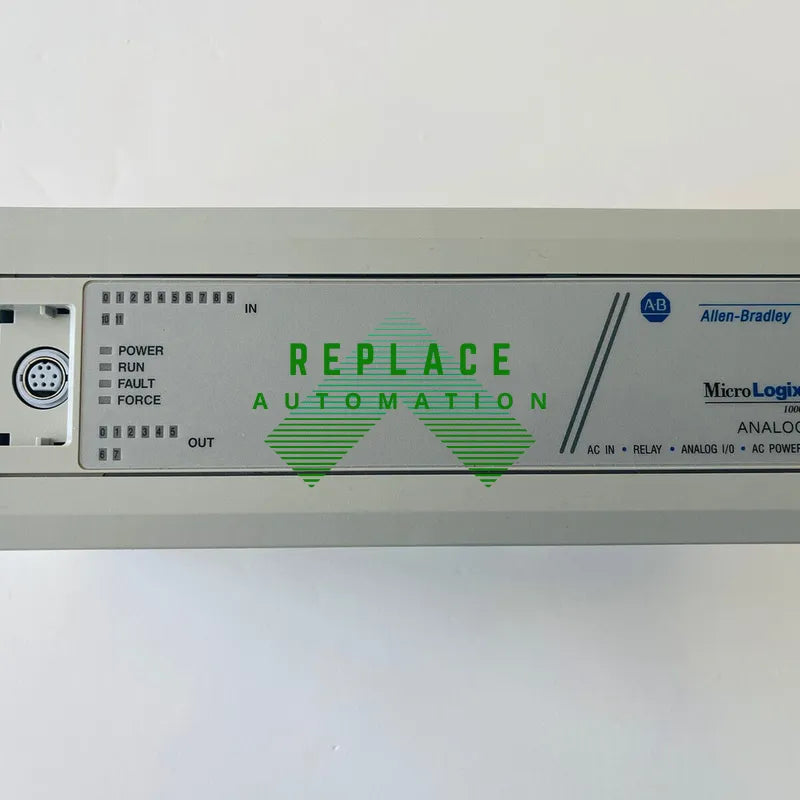

Allen-Bradley 1761-L20AWA-5A
The Allen-Bradley MicroLogix 1000 1761-L20AWA-5A from Rockwell Automation is a compact and robust PLC with a 20-point I/O count, featuring 120V AC inputs, eight relay outputs, and integrated analog circuits (four inputs, one output). Equipped with 1 K EEPROM memory and RS232 communication, it supports DF1 protocol, ideal for industrial control applications.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Controller | MicroLogix 1000 |
| Part Number/Catalog No. | 1761-L20AWA-5A |
| I/O Count | 20 points |
| Input Type | 120V ac |
| Memory | 1 K EEPROM composed of approximately 737 instruction words and 437 data words. |
| Communication port | RS232 |
| Analog Circuits | 4 Inputs, 1 Output |
| Protocol | DF1 |
| Safety Feature | Master Control Relay |
| Product Type | Programmable Logic Controller (PLC) |
| Digital Outputs | 8 Contact Outputs |
| No. of Discrete Inputs | Twelve (12) |
| Dimensions (L x D x H) | 7.87 x 2.87 x 3.15 inces |
| Input Voltage Type | 120 Volts AC |
| Voltage Range | 79-132 Volts AC |
| Output Type | Eight (8) Relay |
| UPC | 10662072766498 |
| Discrete Output Voltage | 24-125 VDC; 0-240VAC |
| Analog Input | Four (4) |
| Product Lifecycle Status* | Discontinued/Obsolete |
| Analog Input Signals | Voltage -10.5 to +10.5V dc - 1LSB; Current 21 to +21 mA - 1LSB |
| Data Type | 16-bit signed integer |
| Input Coding | -32,768 to +32,767 |
| Analog Output | One (1) |
| Power Supply | 120/240 Volts AC |
| Analog Output signal | 0 to 10V dc -1LSB; 4 to 20 mA - 1LSB |
