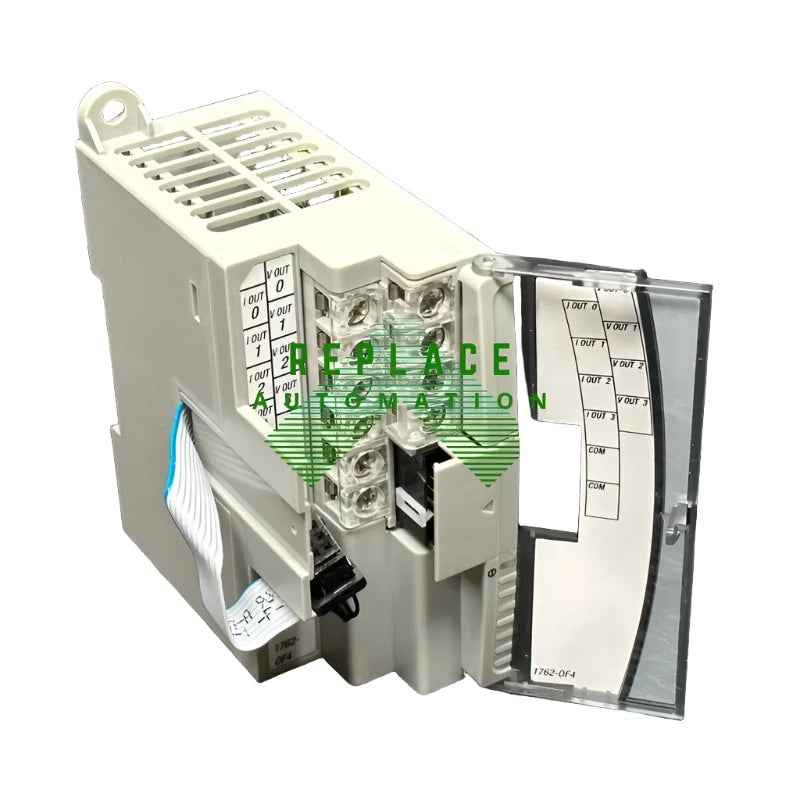

Allen-Bradley 1762-OF4
The Allen-Bradley 1762-OF4, part of Rockwell Automation's MicroLogix series, is an Analog Output Module offering four single-ended outputs with 12-bit resolution across 0-10V DC or 4-20mA. It operates on 24V DC power, ensuring precision with typical accuracy and repeatability. Dimensions are 90 x 87 x 40 mm, and it uses Belden 8761 cabling.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1762-OF4 |
| Product Type | Analog Output Module |
| Series | MicroLogix |
| Outputs | (4) Analog |
| No. of Outputs | Four (4) Single-ended |
| Input Power | 24 Volts DC |
| Analog normal operating range | 0-10 Volts DC; 4-20 mA |
| Output Range | 0-10 Volts DC |
| Full scale analog ranges | 0…10.5V DC; 0…21 mA |
| Converter Type | R-2R Ladder Voltage Switching |
| Resolution | 12 bits (unipolar) |
| UPC | 10662468153246 |
| Typical overall accuracy | ±1.17% full scale at -20 °C…65 °C (-4 °F…149 °F) ±0.5% full scale at 25 °C (77 °F) |
| Repeatability | ±0.12% |
| Dimensions | 90 x 87 x 40 mm (HxDxW) |
| Heat Dissipation | 2.8 Watts |
| Recommended cable | Belden 8761 (shielded) |
