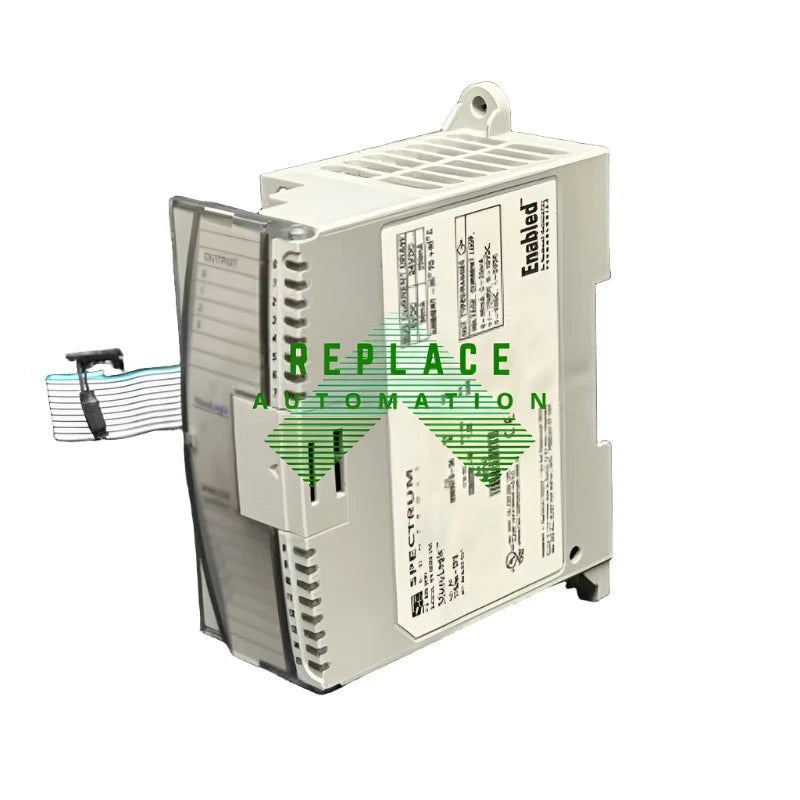

Allen-Bradley 1762SC-OF8
The Allen-Bradley 1762SC-OF8 is an analog output module designed for the MicroLogix 1100/1200/1400 series, featuring 8 channels with a 16-bit resolution. It provides various voltage and current outputs, including 0-20 mA and 0-10 V ranges, with rapid settling times and high accuracy, certified by UL/cUL and CE.
| Manufacturer | Spectrum Controls |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1762SC-OF8 |
| Product Type | Output Module |
| Product TypeUniversal | Analog Output Module |
| Industrial Automation Compatible Series | 1762 MicroLogix |
| Compatible Controllers | MicroLogix 1100 / 1200 / 1400 |
| Channels | 8 |
| No. of Channels | Eight (8) Voltage / Current |
| Current Output Range | 0-20 mA; 4-20 mA |
| Output Type | Analog |
| Voltage Output Range | 0-5 V, 1-5 V, 0-10 V, ±10 V |
| Output Current | 0 to 20 mA |
| Output Voltage | 0 to 5 Volts |
| Resolution | 16 bits |
| Data Format | PID, Engineering Units, Raw Count, Percent of Range |
| Settling Time | <1 ms to 63% of full scale |
| Output Accuracy | ±20 mV at 25 °C; ±50 uA at 25 °C |
| Backplane Current Required | 30 mA at 5 V; 250 mA at 18.7 V; 195 mA at 24 V |
| Thermal Dissipation | 4.9 W maximum |
| Certifications | UL/cUL (Class I, Div 2, Groups ABCD), and CE |
