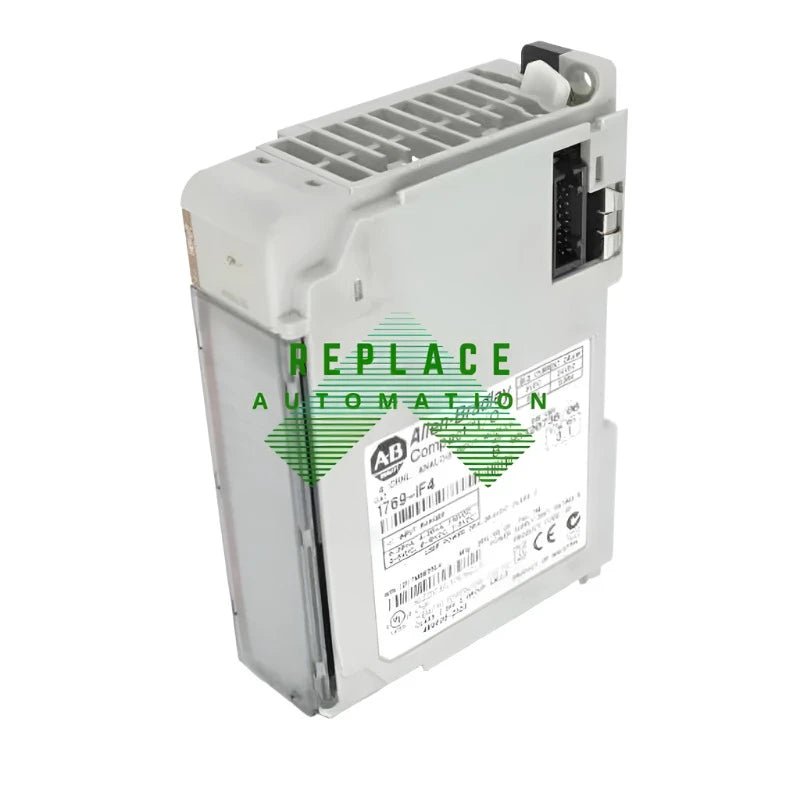

Allen-Bradley 1769-IF4
The Allen-Bradley 1769-IF4 by Rockwell Automation is a 4-channel analog input module for CompactLogix systems. It supports differential and single-ended inputs with a current range of 0-21 mA and a voltage range of 0-10.5VDC. Designed for use with RSLogix5000 software, it's compatible with MicroLogix 1500 and 1769 controllers, featuring a 14-bit resolution and 24VDC power.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1769-IF4 |
| Product Line | CompactLogix |
| Module Type | 4 Channel Analog Input Module |
| Input Type | Analog Input |
| Product Type | Analog Input Module |
| Software | RSLogix5000 |
| Compatible Controllers | MicroLogix 1500; 1769 CompactLogix |
| Communication Cable | 4 Point |
| No. of Inputs | 4 Differential and Single Ended Inputs |
| Power Supply Distance rating | 8 |
| Shipping Weight | 2 lbs. |
| Shipping Dimensions | 8X8X5 in. |
| Input current range | 0-21 mA |
| Series | A and B |
| Current signal normal ranges | 0-20mA; 4-20 mA |
| Converter Type | Delta Sigma |
| Current signal full range | 0-21 mA; 3.2 - 21 mA. |
| Input voltage range | 0-10.5VDC |
| Backplane Current | 1.4 Amps at 24 Volts |
| Voltage signal normal ranges | ±10V DC, 0 …10V DC, 0…5V DC, 1…5V DC |
| Power Consumption | 33.6 Watts |
| Voltage signal full range | ±10.5V DC, -0.5…10.5V DC, -0.5…5.25V DC, 0.5…5.25V DC |
| External Power Switch | 24 VDC |
| Power Dissipation | 7.5 Watts |
| Resolution | 14 bits (unipolar) 14 bits plus sign (bipolar) |
| UPC | 10662468992937 |
| Rated working voltage | 30VAC; 30VDC |
| Programming Software | RSLogix 500; RSLogix 5000; Studio 5000 |
