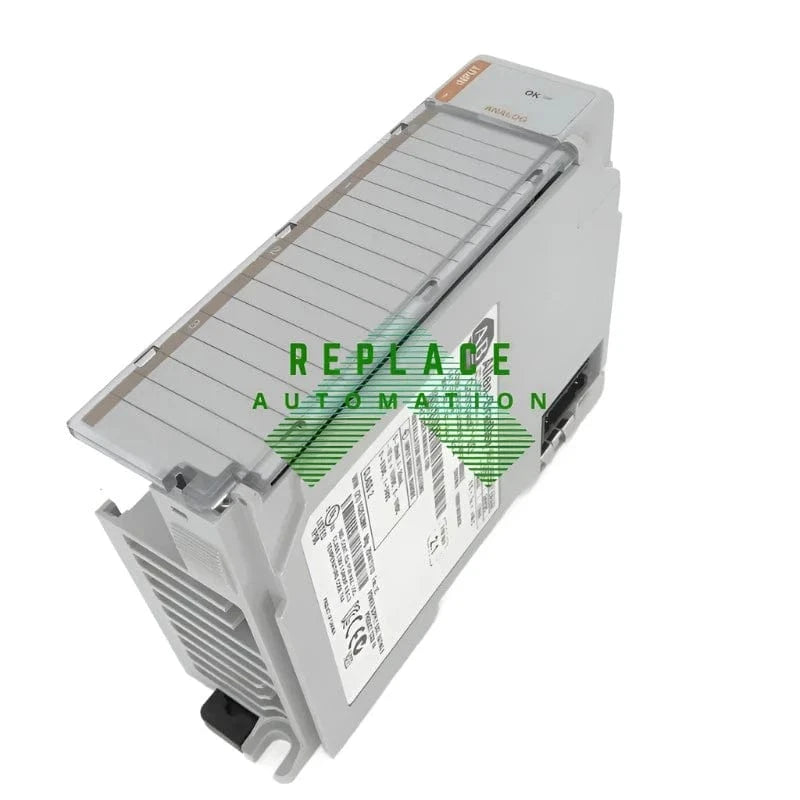

Allen-Bradley 1769-IF4I
The Allen-Bradley 1769-IF4I is a CompactLogix Analog Input Module designed for industrial automation. With 4 individually isolated inputs, it supports various current and voltage ranges. It integrates with RSLogix5000 software, and features a 16-bit resolution, ensuring precise data capturing for control systems. Compact and reliable, it's suited for diverse applications.
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1769-IF4I |
| Product Type | Analog Input Module |
| Product Line | CompactLogix |
| Module Type | Isolated Analog Input Module |
| Input Type | Analog Input |
| No. of Inputs | 4 Individually isolated Differential and single ended inputs |
| Software | RSLogix5000 |
| Power Supply Distance rating | 8 |
| Communication Cable | 4 Point |
| Input current range | 0-21 mA |
| Shipping Weight | 2 lbs. |
| Current signal normal ranges | 0-20mA; 4-20 mA |
| Shipping Dimensions | 8 x 8 x 5 in. |
| Current signal full range | 0-21 mA; 3.2 - 21 mA. |
| Series | A and B |
| Input / Output voltage range | 0-10.5VDC |
| Inputs | 4 Isolated Differential |
| Voltage signal normal ranges | ±10V DC, 0 …10V DC, 0…5V DC, 1…5V DC |
| Voltage signal full range | ±10.5V DC, -0.5…10.5V DC, -0.5…5.25V DC, 0.5…5.25V DC |
| Replacement Terminal Block | 1769-RTBN18 |
| Converter Type | Sigma-Delta |
| Resolution | 16 bits (unipolar) 15bits plus sign (bipolar) |
| Wire Type | Copper-90 degrees Celsius |
| Wire Size (Solid) | 22-14 AWG |
| Rated working voltage | 30VAC; 30VDC |
| UPC | 10781180908634 |
| Channel Diagnostics | Over- or under-range by bit reporting, process alarms |
| Slot width | 1 |
| Recommended cable | Beldenâ„¢ 8761 (shielded) |
| Dimension | 118 mm (height) x 87 mm (depth) x 35 mm (width) [52.5 mm (width) for 1769-IF8] Height including mounting tabs is 138 mm 4.65 in (height) x 3.43 in (depth) x 1.38 in (width) [2.07 in (width) for 1769-IF8] Height including mounting tabs is 5.43 in |
