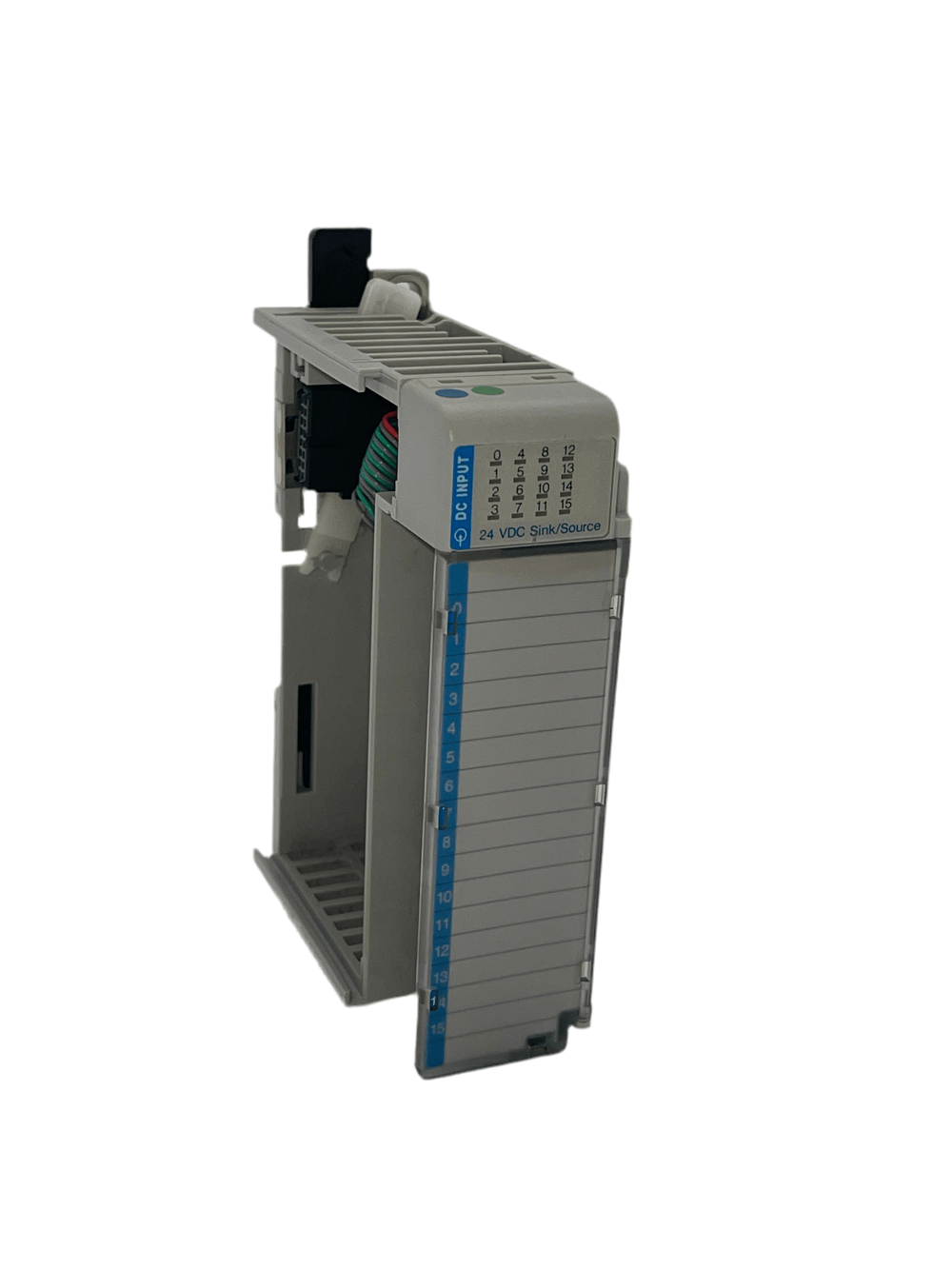

Allen-Bradley 1769-IQ16
The Allen-Bradley 1769-IQ16 is a Compact I/O discrete input module designed for use with CompactLogix and MicroLogix 1500 controllers. This 24V DC sink/source input module has 16 digital inputs, divided into two groups, is compatible with RSLogix5000 software, and suitable for 22-14 AWG wiring. Its compact design benefits industrial automation by optimizing space and simplifying installation.
| Manufacturer | Industrial Automation / Allen-Bradley |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1769-IQ16 |
| Product Family | Compact I/O |
| Product Line | CompactLogix |
| Product Type | Discrete Input Module |
| Module Type | DC Input Module |
| Input Type | Digital Input |
| No. of Inputs | 16 |
| No. of Groups | 2 groups (8 inputs each) |
| Software | RSLogix5000 |
| Power Supply Distance rating | 8 |
| Communication Cable | 16 Point |
| Compatible Controllers | MicroLogix 1500; CompactLogix |
| Shipping Weight | 2 lbs. |
| Voltage Category | 24V DC sink/source |
| Shipping Dimensions | 8 x 8 x 5 in. |
| Series | A and B |
| Operating Voltage range | 10…30V DC @ 30 °C (86 °F) 10…26.4V DC @ 60 °C (140 °F) |
| Distance Rating | 8 Modules |
| Off-state Voltage | 5V DC |
| On-state Voltage | 10V DC |
| Working Voltage Rating | 30 Volts AC/ 30 Volts DC |
| Input delay, On | 8 ms |
| Wire Type | Copper-90 degrees Celsius |
| Power Supply | 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 |
| Replacement Terminal Block | 1769-RTBN18 |
| Wire Size (Solid) | 22-14 AWG |
| UPC | 10662468992814 |
| Wire Size | 22-14 AWG (Solid); 22-16 AWG (stranded) |
| Programming Software | RSLogix 500; RSLogix 5000 / Studio 5000 |
