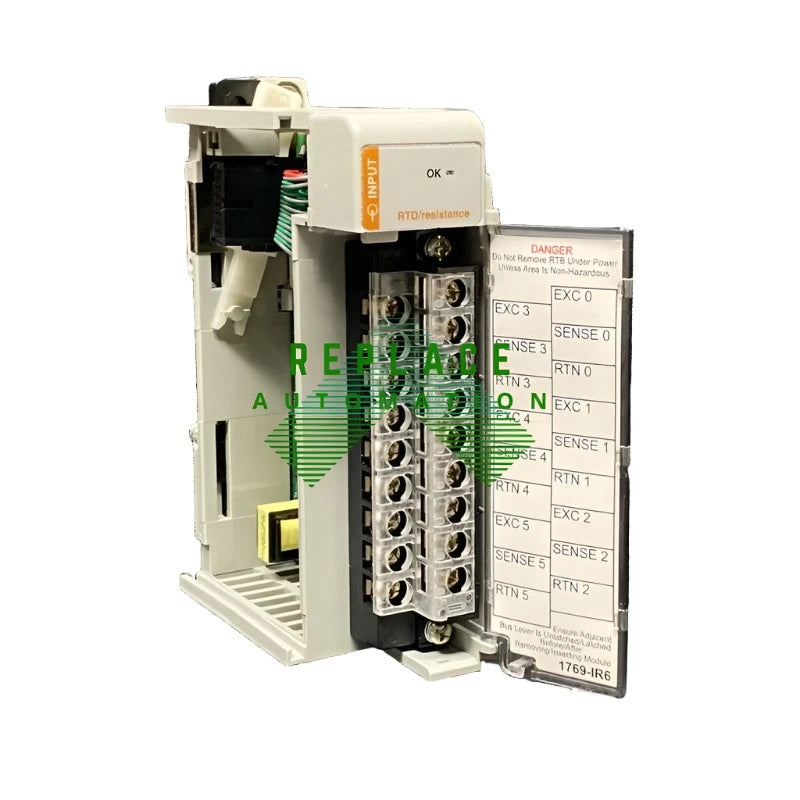

Allen-Bradley 1769-IR6
The Allen-Bradley 1769-IR6 is a CompactLogix RTD/Resistance Input Module, designed to support six resistance inputs. Compatible with a range of sensors and platinum resistance signals, it features a sigma-delta converter and precise repeatability for temperature and resistance measurements. It's suitable for a variety of temperature monitoring applications within a Compact I/O framework.
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1769-IR6 |
| Product Type | RTD / Resistance Input Module |
| Product Line | CompactLogix |
| Product Family | Compact I/O |
| Module Type | RTD Module |
| Input Type | Resistance |
| No. of Inputs | 6 |
| Software | RSLogix5000 |
| Sensors supported | 100, 200, 500, 1000 ? Platinum 385 100, 200, 500, 1000 ? Platinum 3916 120 ? Nickel 672 120 ? Nickel 618 10 ? Nickel-iron 518 |
| Communication Cable | 6 Point |
| Shipping Weight | 2 pounds |
| Compatible Controllers | MicroLogix 1500; CompactLogix |
| Shipping Dimensions | 8 x 8 x 5 inches |
| Current draw @ 5.1V | 100 mA |
| Series | A and B |
| Current draw @ 24 | 35 DC |
| Replacement Door Part Number | 1769-RD |
| Heat dissipation, max | 1.5W |
| Replacement Door Label Part Number | 1769-RL2 series B |
| Converter Type | Sigma Delta |
| Replacement Terminal Block Part Number | 1769-RTBN18 |
| Nonlinearity | ±0.05% |
| Wire Type | Copper 90 degrees Celsius |
| Repeatability (50/60 Hz filter) | ±0.01 °C (0.018 °F) for Ni and NiFe ±0.2 °C (0.36 °F) for other RTD inputs ±0.04 ? for 150 ??resistances ±0.2 ??for other resistances |
| Wire Size (Solid) | 22 to 14 AWG |
| Open circuit detection time | 6 ms…303 s |
| UPC | 10611320314417 |
| Recommended Cable | 2-wire configuration: Belden 9501 or equivalent 3-wire configuration: Belden 9533 or equivalent 4-wire configuration: Belden 83503 or equivalent |
| UNSPSC | 32151705 |
