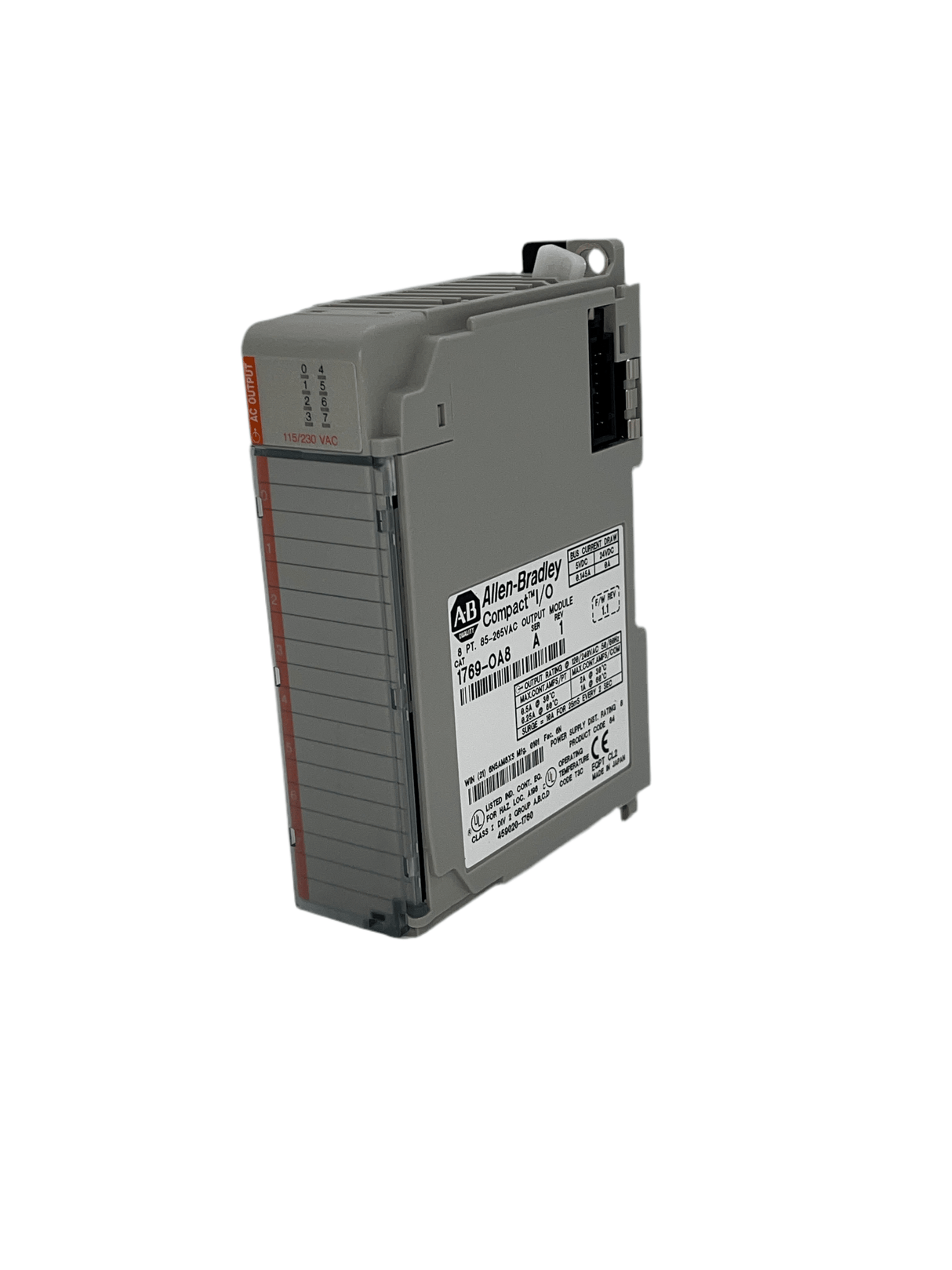

Allen-Bradley 1769-OA8
The Allen-Bradley 1769-OA8 is a CompactLogix output module providing 8 analog outputs for flexible industrial control. Compatible with MicroLogix 1500 and CompactLogix controllers, it operates at 120-240 VAC and utilizes RSLogix5000 software. Designed for DIN rail or panel mounting, it's a crucial component for modular automation applications.
| Manufacturer | Industrial Automation / Allen-Bradley |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1769-OA8 |
| Product Line | CompactLogix |
| Product Type | Compact I/O |
| Module Type | Output Module |
| Input Type | Analog Output |
| Compatible Controllers | MicroLogix 1500; 1769 CompactLogix |
| Software | RSLogix5000 |
| No. of Inputs | 8 |
| Power Supply Distance Rating | 8 |
| Communication Cable | 8 Point |
| No. of Groups | 2 groups (4 inputs each) |
| Shipping Weight | 2 lbs. |
| Voltage Category | 120-240 VAC |
| Shipping Dimensions | 8x8x5 in. |
| Series | A and B |
| Operating Voltage range | 85V ac to 265VAC |
| Operating frequency | 47 to 63 Hz |
| Signal delay | Turn-on = 1/2 cycle turn-off = 1/2 cycle |
| Wire Size (Solid) | 22 o 14 AWG |
| Bus Current draw, max | 145 mA at +5V dc line (1.125W) |
| Wire Size (Stranded) | 22 to 16 AWG |
| Heat Dissipation | 2.12 Watts |
| UPC | 10662468992845 |
| Wire size | (22…14 AWG) solid (22…16 AWG) stranded |
| Mounting | DIN Rail; Panel Mount |
| Power supply | 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 |
| Programming Software | RSLogix 5000 / Studio 5000 Logix Designer |
