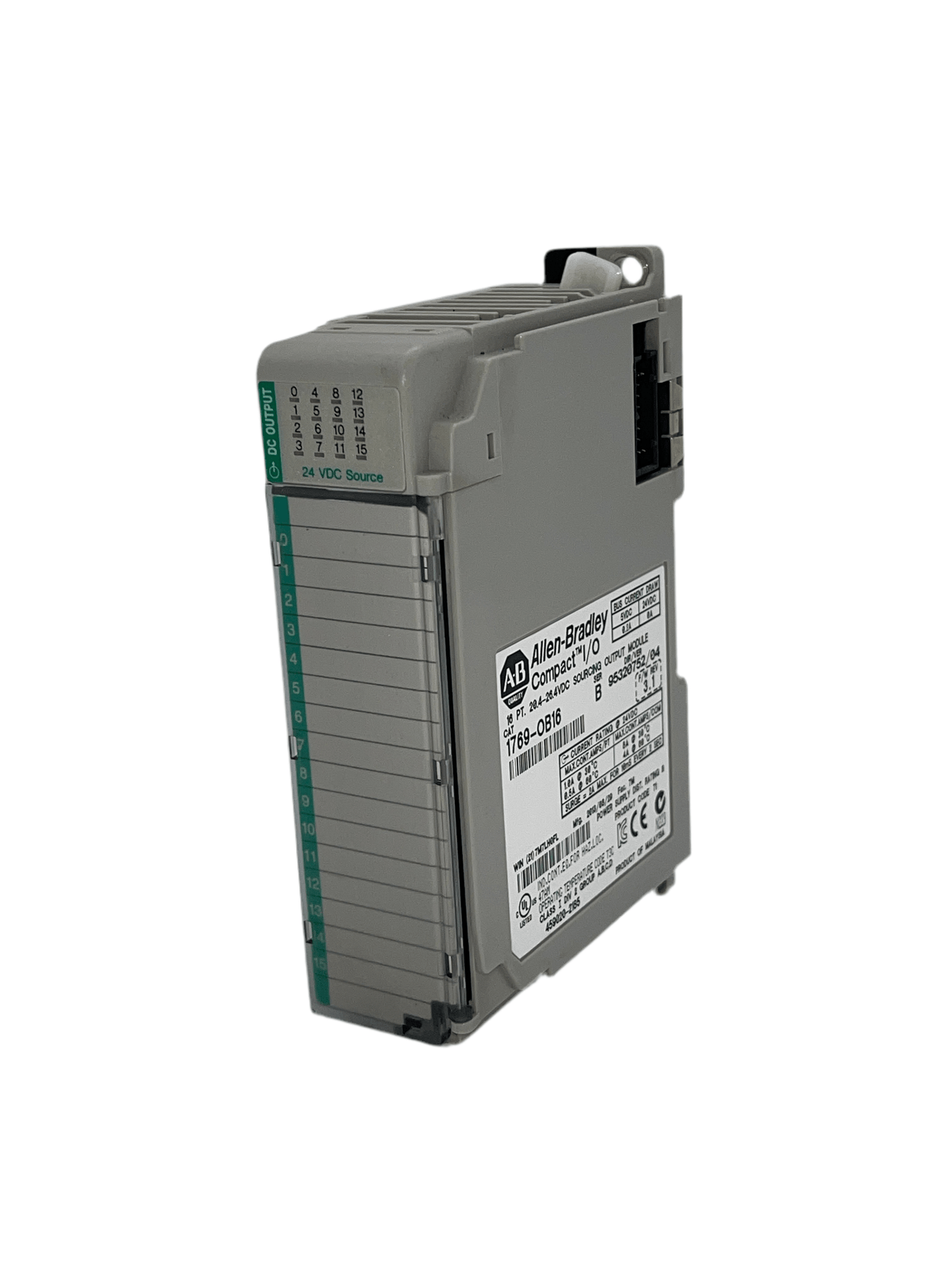

Allen-Bradley 1769-OB16
The Allen-Bradley 1769-OB16 is a CompactLogix discrete DC output module designed for industrial automation. This module from the Compact I/O product line supports 16 digital outputs, operating within a 20.4-26.4V DC voltage range and has a 0.5A current capacity per point. It's compatible with both series A and B, programmable via RSLogix5000 software, and easily mounts on DIN rails or panels. The unit incorporates a 1769-RTBN18 terminal block, ships at 2 lbs, and measures 8x8x5 inches.
| Manufacturer | Industrial Automation / Allen-Bradley |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1769-OB16 |
| Product Family | Compact I/O |
| Product Line | CompactLogix |
| Product Type | Discrete Output Module |
| Module Type | DC Output Module |
| Input Type | Digital Output |
| No. of Outputs | 16 |
| Power Supply Distance Rating | 8 |
| Software | RSLogix5000 |
| No. of Groups | 1 |
| Communication Cable | 16-Point |
| Voltage Category | 24V DC source |
| Shipping Weight | 2 lbs |
| Shipping Dimensions | 8 x 8 x 5 in |
| Operating Voltage range | 20.4…26.4V DC |
| Current per point | 0.5 A @ 60 °C (140 °F) 1.0 A @ 30 °C (86 °F) |
| Power | 24 Volts DC |
| Output delay, On | 0.1 ms |
| Series | A and B |
| Output delay, Off | 1.0 ms |
| Bus Current draw, max | 200 mA |
| Heat Dissipation | 2.11 W |
| Wire Size (Solid) | 22-14 AWG |
| Mounting | DIN rail or panel mount |
| UPC | 10662468992869 |
| Terminal Block | 1769-RTBN18 (1 per kit) |
| UNSPSC | 32151705 |
| Power Supply | 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 |
| Programming Software | RSLogix500 (MicroLogix 1500); RSLogix5000 / Studio 5000 (CompactLogix Controllers) |
