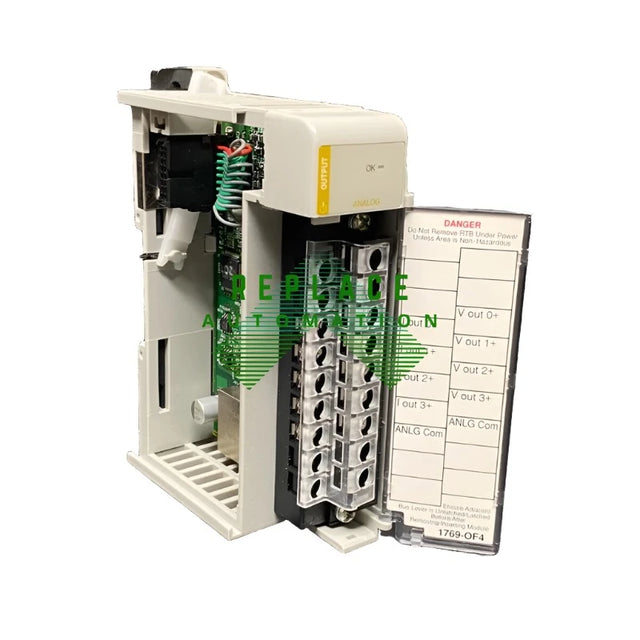

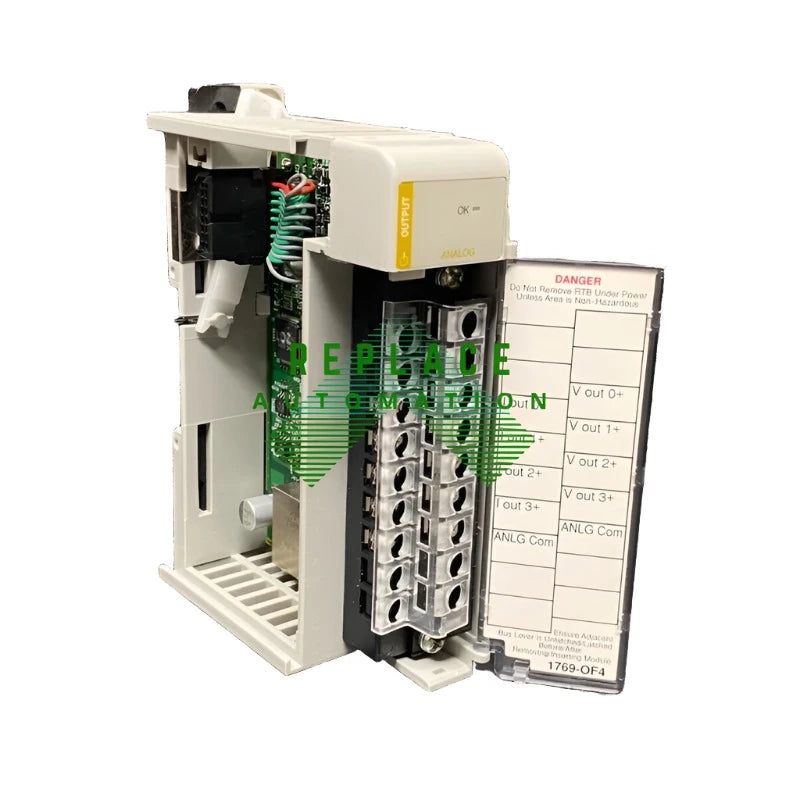

Allen-Bradley 1769-OF4
The Allen-Bradley 1769-OF4 is a CompactLogix analog output module with four single-ended outputs, compatible with MicroLogix 1500 and CompactLogix controllers. This module, usable with RSLogix5000 software, supports various voltage and current ranges, has a 2.5 ms conversion rate, and requires no calibration, simplifying installation and maintenance.
| Manufacturer | Industrial Automation / Allen-Bradley |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1769-OF4 |
| Product Family | Compact I/O |
| Product Line | CompactLogix |
| Module Type | Analog Output Module |
| Input Type | Analog Output |
| No. of Outputs | Four (4) Single Ended |
| Software | RSLogix5000 |
| Compatible Controllers | MicroLogix 1500; CompactLogix |
| Communication Cable | 4 Point |
| Programming Software | RSLogix 500; RSLogix 5000 / Studio 5000 Logix Designer |
| Shipping Weight | 2 pounds |
| Power Supply Distance rating | 8 |
| Shipping Dimensions | 8 x 8 x 5 inches |
| Analog Ranges | Voltage: ±10V dc, 0 to 10V dc, 0 to 5V dc, 1 to 5V dc Current: 0 to 20 mA, 4 to 20 mA |
| Series | A and B |
| Full scale analog ranges | Voltage: ±10.5V dc, -0.5 to 10.5V dc, -0.5 to 5.25V dc, 0.5 to 5.25V dc Current: 0 - 21 mA, 3.2 - 21 mA |
| Replacement Terminal Block Part Number | 1769-RTBN18 |
| Analog data format | 15 bits plus sign unipolar and bipolar |
| Replacement Door Part Number | 1769-RD |
| Conversion rate | 2.5 ms |
| Wire Type | Copper |
| Current draw @ 5.1V | 120 mA |
| Solid Wire Size | 22 to 14 AWG |
| Current draw @ 24V | 170 mA |
| Stranded Wire Size | 22 to 16 AWG |
| Heat Dissipation | 2.86 W |
| UPC | 10612598840783 |
| Calibration | None required (guaranteed by hardware design) |
| Non-linearity (in percent full scale) | ±0.05% |
| Slot width | 1 |
