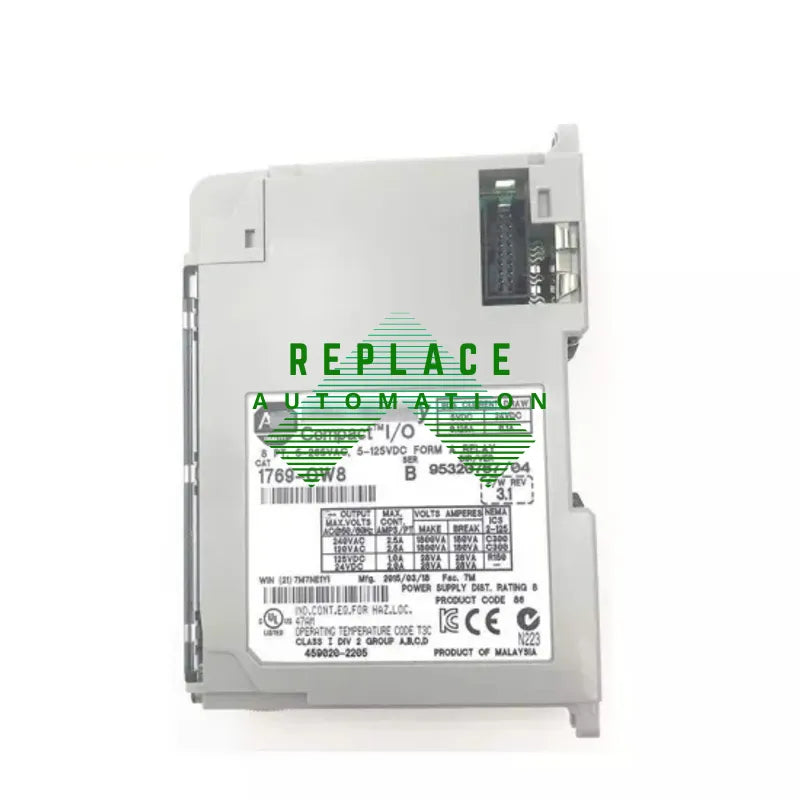

Allen-Bradley 1769-OW8
The Allen-Bradley 1769-OW8 is a CompactLogix Relay Output Module with eight normally open AC/DC outputs, designed for use with MicroLogix 1500 and CompactLogix controllers. This module, operating within a voltage range of 5-265V AC and 5-125V DC, requires RSLogix software for programming and supports both DIN Rail and Panel Mount installations.
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1769-OW8 |
| Product Family | Compact I/O |
| Product Line | CompactLogix |
| Product Type | Discrete Output Module |
| Module Type | Relay Output Module |
| Input Type | Relay Output |
| No. of outputs | Eight (8) |
| Software | RSLogix5000 |
| Power Supply Distance rating | 8 |
| Communication Cable | 8 Point |
| Programming software | RSLogix 500, RSLogix 5000; Studio 5000 |
| Shipping Weight | 2 pounds |
| Compatible controllers | MicroLogix 1500; CompactLogix controllers |
| Shipping Dimensions | 8 x 8 x 5 inches |
| Voltage Category | AC/DC normally open relay |
| Series | A and B |
| Operating Voltage range | 5 to 265V ac 5 to 125V dc |
| Signal delay, On | 10 ms |
| Wire Size (Solid) | 22 to 14 AWG |
| Wire Size (Stranded) | 22 to 16 AWG |
| Bus Current draw, 5.1 V | 125 mA |
| Wire Type | Copper-90 degrees |
| Bus Current draw, 24 V | 100 mA |
| Solid Wire Size | 22 to 14 AWG |
| Heat Dissipation | 2.83 Watts |
| Stranded Wire Size | 22 to 16 AWG |
| Slot width | 1 |
| UPC | 10662468992890 |
| Mounting | DIN Rail or Panel Mount |
| Dimensions | 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) Height with mounting tabs 138 mm (5.43 in.) |
| Power Supply | 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 |
| Wire Size | (22…14 AWG) solid (22…16 AWG) stranded |
