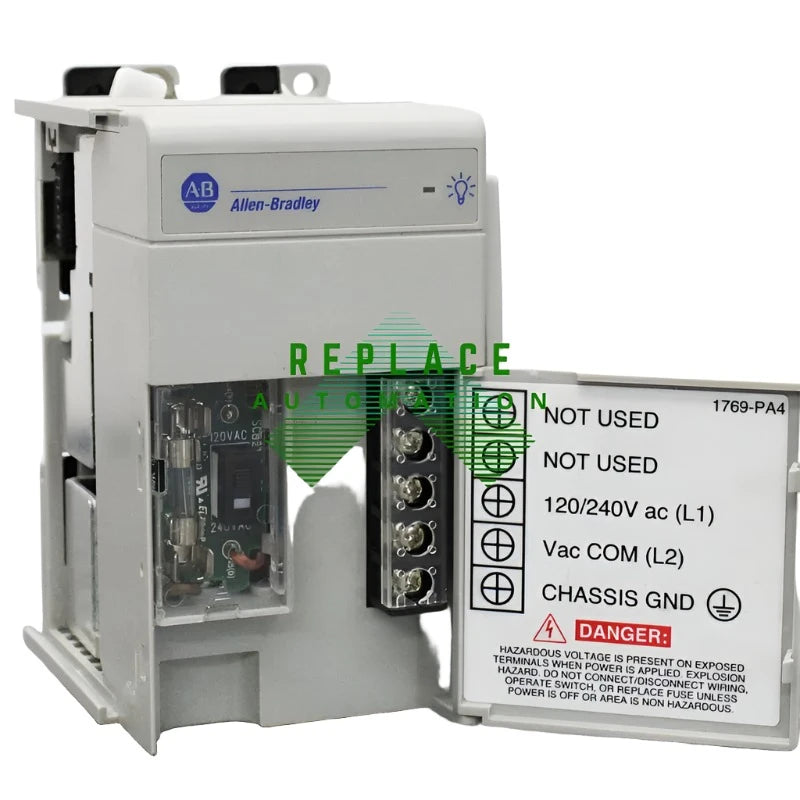

Allen-Bradley 1769-PA4
The Allen-Bradley 1769-PA4 is a CompactLogix AC Power Supply Module that supports a voltage range of 85-265V AC. It can power up to 16 I/O modules, with 8 on each side, and consumes 200 VA at 120V AC. Featuring a robust design, it has no enclosure, operates within 47-63 Hz, and is designed for both series A and B with a 1-year warranty.
| Manufacturer | Industrial Automation / Allen-Bradley |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1769-PA4 |
| Product Line | CompactLogix |
| Product Type | I/O Power Supply |
| Module Type | AC Power Supply Module |
| Input Power | 120 Volts AC |
| Input Voltage range | 85…265V AC or170...265V AC,switch selectable |
| Power Supply Distance Rating | 8; 8 I/O modules can be connected on either side of the power supply for a maximum of 16 module. |
| Software | RSLogix5000 |
| Input frequency range | 47…63 Hz |
| Shipping Dimensions | 8 x 8 x 5 inches |
| Power consumption | 200 VA @ 120V AC240 VA @ 240V AC |
| Enclosure Type | None (Open Style) |
| Power dissipation | 8 W @ 60 °C (140 °F) |
| Series | A and B |
| Current capacity @ 5V DC | 4.0 A |
| Warranty | 1 year |
| Current capacity @ 24V DC | 2.0 A |
| Wire Type | Copper wire withstanding 90 degrees Celsius |
| Inrush current, max | 25 A @ 132V AC |
| Solid Wire Size | 22 to 14 AWG |
| Fuse type | Littelfuse 02153.15MXP; Wickmann 19195-3.15A |
| Input Frequency | 47 to 63 Hertz |
| Dimensions (HxWxD), approx. | 118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.) height including mounting tabs is 138 mm (5.43 in.) |
| Stranded Wire Size | 22 to 16 AWG |
| Weight | 525 g (1.16 lb) |
| UPC | 10612598276889 |
| Wire size | 14 AWG (2.5 mm2 ) solid copper wire rated at 90 °C (194 °F) or greater, 1.2 mm (3/64 in.) insulation max |
| Certifications | c-UL-us; CE; C-Tick |
