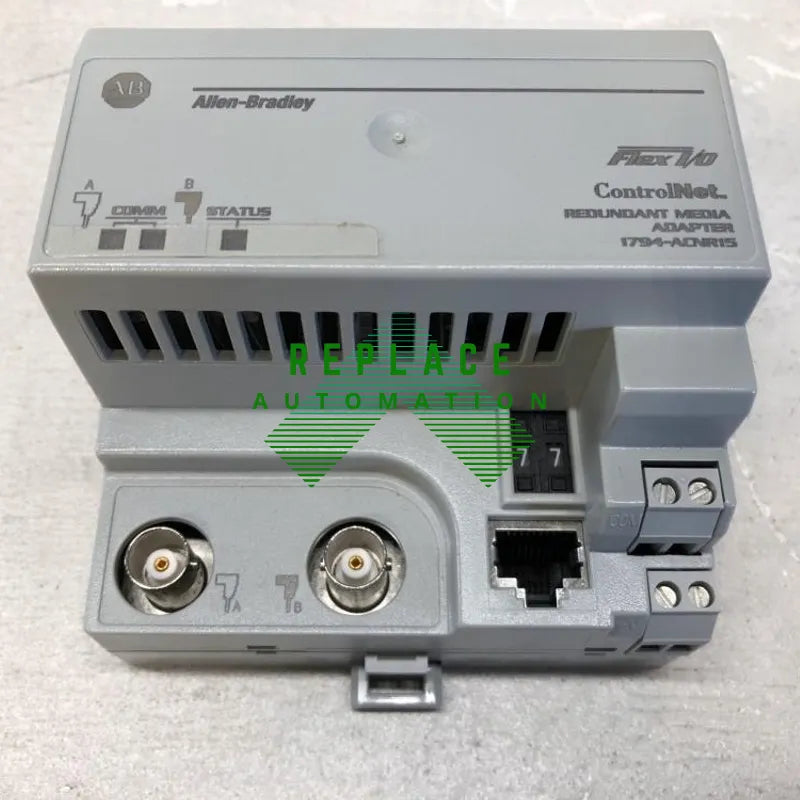

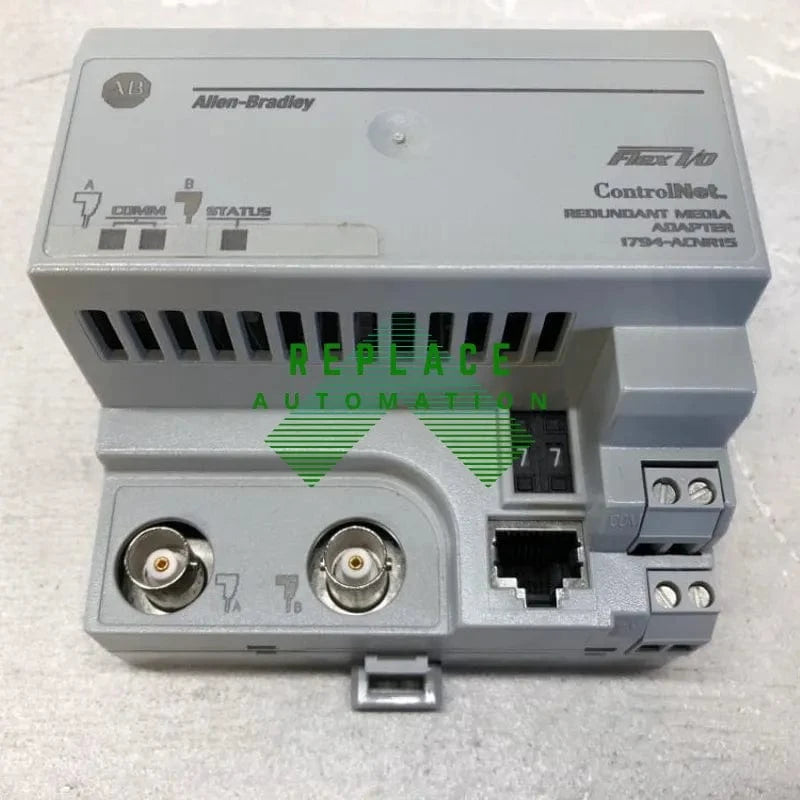

Allen-Bradley 1794-ACNR15
The Rockwell Automation 1794-ACNR15 is an Allen-Bradley Redundant ControlNet Adapter Module designed for reliable industrial network communication. Supporting RSLogix software suites, it offers a 5 Mbps data transfer rate, dual ControlNet ports, LED indicators, and operates at a 24V DC input voltage range within harsh 55°C environments.
| Manufacturer | Rockwell Automation |
| Power Dissipation | 3.4W maximum @ 19.2V dc |
| Brand | Allen-Bradley |
| Product Description | Redundant ControlNet Adapter Module |
| Programming software | RSLogix5, RSLogix500, RSLogix5000, Studio 5000 Logix Designer |
| Communication Port | Two (2) ControlNet BNC |
| Data Transfer speed | 5 Mbps |
| Indicators | Comm A: red/grn Comm B: red/grn I/O status- red/grn |
| Mounting | DIN Rail |
| ControlNet Protocol | V 1.25 |
| ControlNet cable | 3.31 mm2 (12 AWG) stranded max 1.2 mm (3/64 in.), insulation, max |
| Operating Temperature | -20…55 °C -4…131 °F) |
| Surrounding Temperature | 55 °C (131 °F) |
| Vibration | IEC 60068-2-6 (Test Fc, Operating) IEC 60068-2-6 (Test Fc, Operating): 5 g @ 10…500 Hz |
| Operating Shock | IEC 60068-2-27 (Test Ea, Unpackaged Shock): 30 g |
| Power Consumption | 400mA maximum from external 24V supply |
| Thermal Dissipation | 15.7 BTU/hr @ 19.2V dc |
| Part Number/Catalog No. | 1794-ACNR15 |
| Product Type | Redundant Media ControlNet Adapter |
| Voltage | 24 V DC |
| Input Voltage Range | 19.2-31.2V DC |
| Flexbus Output Current | 640 mA max. |
| Isolation Voltage | 850V DC |
| Inrush Current | 23A for 2ms |
| Communication Rate | 5M bps |
| Current Draw | 450mA max. |
| UPC | 10612598180599 |
