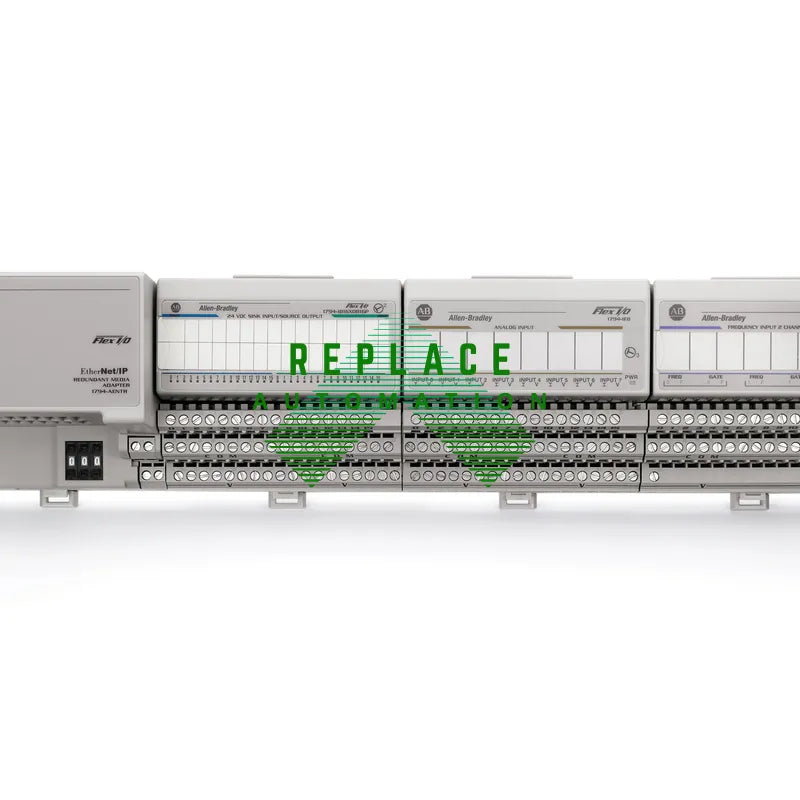

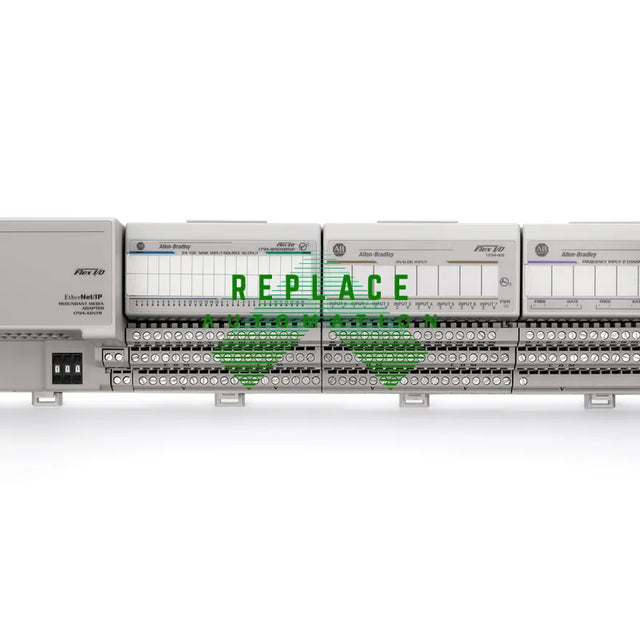

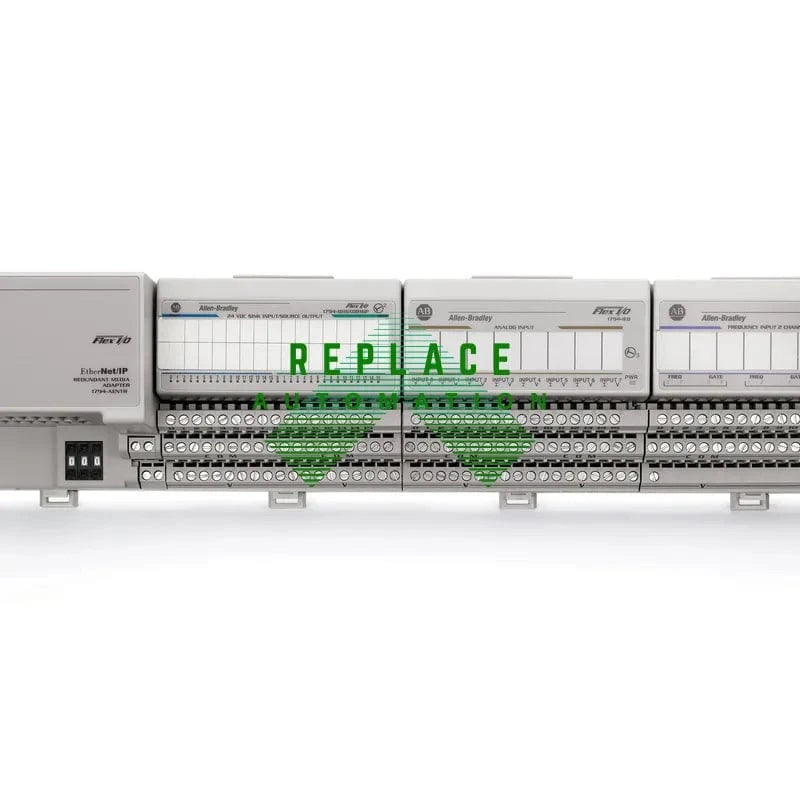

Allen-Bradley 1794-IE8
The Allen-Bradley Flex IO module by Rockwell Automation is a high-density analog input device featuring eight single-ended inputs with 12-bit resolution, suitable for various voltage and current measurements. It offers high accuracy and temperature stability, designed for easy DIN rail mounting, and operates efficiently across diverse industrial temperatures.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Product Description | Flex IO High Density Analog Input Module |
| No. of inputs | Eight (8) Single Ended |
| Input type | 0 to 20 mA; 4 to 20 mA; +/- 10VDC; 0 to 10 VDC |
| Conversion Type | Successive Approximation |
| Data Format | 16 bit 2’s complement, left justified |
| Resolution | 12 bits unipolar; Voltage: 11 bits plus sign bipolar 2.56mV/cnt unipolar; Current: 5.13mV/cnt bipolar 5.13?A/cnt |
| Absolute Accuracy | 0.20% full scale @ 25 °C |
| Accuracy Drift with Temperature | Voltage Terminal - 0.00428% Full Scale/°C Current Terminal - 0.00407% Full Scale/°C |
| Terminal base | 1794-TB2, 1794-TB3, and 1794-TB3S, 1794-TB3T, 1794- TB3TS |
| Indicators | 1 green/red power/status indicator |
| External DC supply, nom | 24V DC |
| External DC supply range | 10.0…31.2V DC (includes 5% AC ripple) |
| Mounting | DIN Rail |
| Wire Size | Determined by installed terminal base |
| Operating Temperature | 0 to 55 C (32 to 131 F) |
| Storage Temperature | –40…85 °C (–40…185 °F) |
| Vibration | 5g @ 10 to 500 Hz |
| Part Number/Catalog No. | 1794-IE8 |
| Product Type | Flex I/O High-Density Analog Module |
| Inputs | 8 Single-ended |
| Resolution Voltage Current | 5.13 Amps/cnt |
| Conversion Rate | 256 seconds |
| Input Current Terminal | 4 to 20 mA |
| Input Voltage Terminal | +/- 10 Volts |
| FlexBus Current | 60 mA |
| External DC Power Supply | 60 mA at 24 Volts DC |
| Isolation Voltage | 50 Volts Continuous |
| Power Dissipation | 3.0W at 31.2 Volts DC |
| Thermal Dissipation | 10.2 BTU/hour at 31.2 Volts DC |
| UPC | 10612598137814 |
