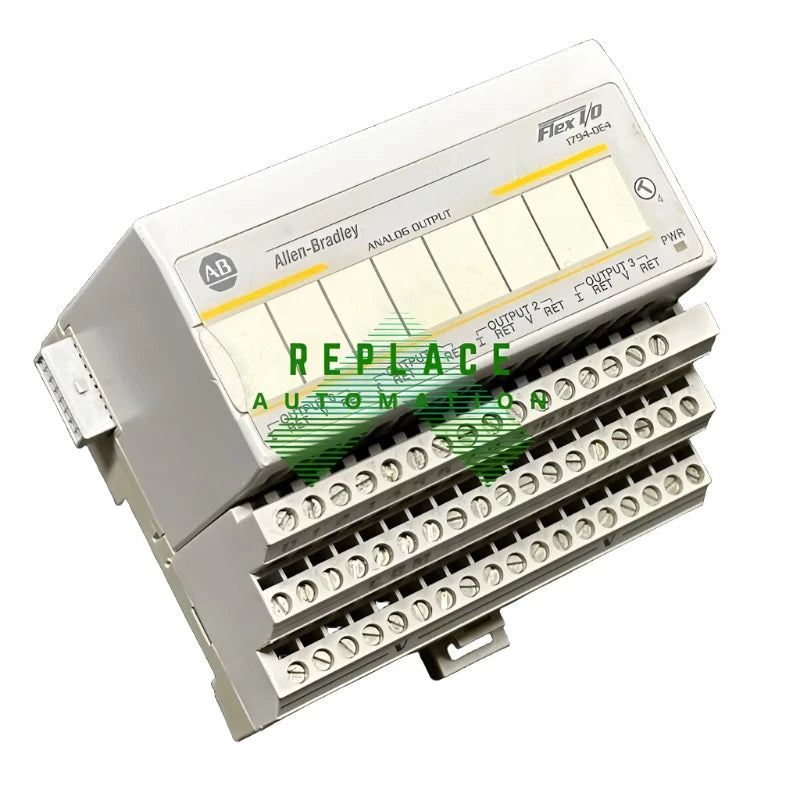

Allen-Bradley 1794-OE4
The Allen Bradley 1794-OE4 is a high-density analog output module from Rockwell Automation, featuring four single-ended outputs, 12-bit resolution, and PWM conversion. Suited for various voltage and current signals, it boasts a quick 1.024ms conversion rate and reliable performance in a compact Flex IO form factor.
| Manufacturer | Rockwell Automation |
| Conversion Type | Pulse Width modulation |
| Data Format | left justified, 16 bit 2s complement |
| Resolution | 12 bits plus sign Voltage: 2.56mV/cnt Current: 5.13µA/cnt |
| Brand | Allen-Bradley |
| Product Description | Flex IO High Density Analog Output Module |
| No. of inputs | Four (4) Single Ended |
| Output type | 0 to 20 mA; 4 to 20 mA; +/- 10VDC; 0 to 10 VDC |
| Conversion Rate | 1.024ms maximum all channels |
| Terminal base | 1794-TB2, -TB3, -TB3S, -TB3T, -TB3TS, and -TBN |
| Indicators | 1 green/red power/status indicator |
| External DC supply, nom | 24V DC |
| External DC supply range | 10.0…31.2V DC (includes 5% AC ripple) |
| Mounting | DIN Rail |
| Wire Size | Determined by installed terminal base |
| Operating Temperature | 0 to 55 C (32 to 131 F) |
| Storage Temperature | –40…85 °C (–40…185 °F) |
| Vibration | 5g @ 10 to 500 Hz |
| Part Number/Catalog No. | 1794-OE4 |
| Product Type | Flex I/O Output Analog Module |
| Outputs | 4 Single-ended |
| Output Current Terminal | 4 to 20 mA |
| Output Voltage Terminal | +/- 10 Volts |
| Current Load on Voltage Output | 3 mA maximum |
| Flexbus Current | 20 mA |
| Power Dissipation | 4.5 W at 31.2 Volts DC maximum |
| Thermal Dissipation | 13.6 BTU/hour at 31.2 Volts DC maximum |
| UPC | 10612598137876 |
| UNSPSC | 32151602 |
