ATV312HD15N4
Need a higher quantity or specific condition Submit RFQ Above!
Replace Industrial is NOT an authorized distributor for Schneider Electric
Shipping & Delivery
Shipping & Delivery
Our standard shipping method is UPS Ground. We can also ship on your FEDEX or DHL account. We can ship many items our the same day via Overnight or 2 Day Shipping.
Product Conditions
Product Conditions
Surplus: Surplus units show no signs of installation or having been used previously. These units are in the original packaging, which may have been opened.
Used: Used units have been previously used and are inspected, cleaned and tested.
All units come with a 1 Year Replace Industrial Warranty.
Tax & Exemptions
Tax & Exemptions
We currently only collect tax from customers in the state of North Carolina. If you are exempt on your purchase, please email your Sales Tax & Use Exemption Form to sales@replacenc.com.
If you are checking out via a quote we send you, there is an option to upload your form at the time of purchase.
If you have already placed an order, please send us your form and we can refund the charged taxes.
Product Conditions
Replace Industrial, LLC is not affiliated with any of the manufacturers listed on this website. All products are sourced & verified through the industrial surplus market and through other independent supply chains. We do not convey any manufacturer warranty with the product. Each product sold comes with a 2 Year Replace Industrial Warranty, unless specified otherwise. This warranty conveys solely through Replace Industrial, LLC. and is completely unaffiliated with any manufacturer warranty. The terms of our warranty can be found here.
Surplus: This unit is sourced through the industrial market outside of the manufacturer and has been independently verified to not have been used operationally previously. These units are in the original packaging, but the packaging & unit may show signs of shelf wear.
Used: This unit may have been previously used and show signs of wear. The unit has been independently verified and is guaranteed with a 1 Year Replace Automation Warranty. The unit has been sourced through independent supply chains in the industrial markets.
Firmware: Replace Industrial, LLC sells hardware only and does not sell firmware and makes no representation as to what firmware may or may not be present on the hardware. We do not obtain or provide software for customers.

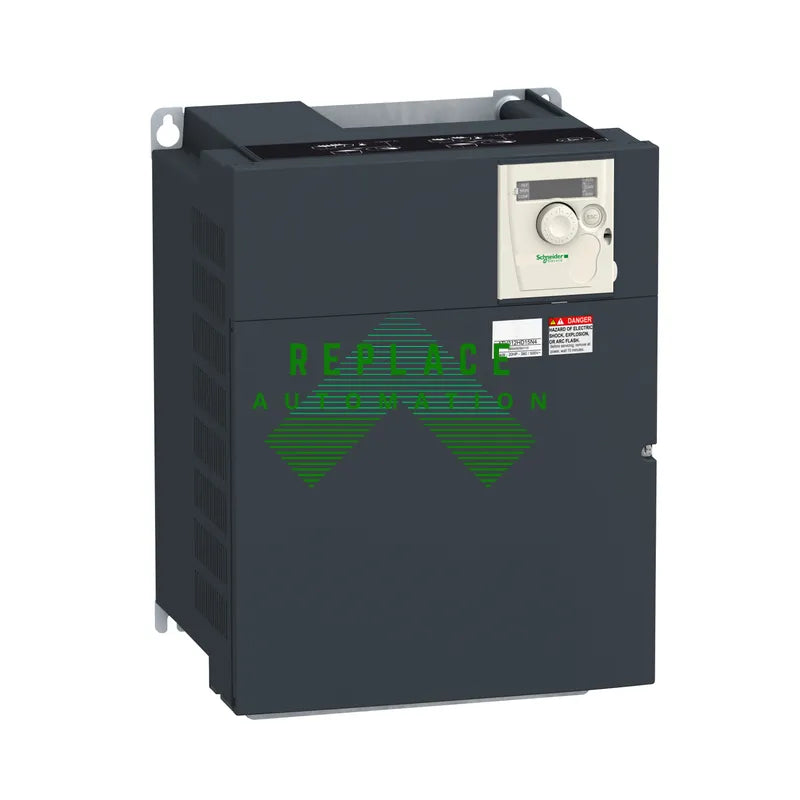

Schneider Electric ATV312HD15N4
The ATV312HD15N4 is a high-performance Altivar 312 variable speed drive designed for simple machine applications. It provides efficient speed control to asynchronous motors, with a 15kW/20 hp power rating, meant for 3-phase supplies ranging from 380 to 500V. This robust unit includes an integrated EMC filter and operates within a speed range of 1 to 50, maximizing energy savings and motor performance.
| Range of Product | Altivar 312 |
| Product or Component Type | Variable speed drive |
| Product destination | Asynchronous motors |
| Product Specific Application | Simple machine |
| Assembly style | With heat sink |
| Component name | ATV312 |
| Motor power kW | 15 kW |
| Maximum Horse Power Rating | 20 hp |
| [Us] rated supply voltage | 380...500 V - 15...10 % |
| Supply frequency | 50...60 Hz - 5...5 % |
| Phase | 3 phase |
| Line current | 48.2 A 380 V, Isc = 22 kA 36.8 A 500 V |
| EMC filter | Integrated |
| Apparent power | 32 kVA |
| Maximum transient current | 49.5 A 60 s |
| Power dissipation in W | 492 W at nominal load |
| Speed range | 1…50 |
| Asynchronous motor control profile | Sensorless flux vector control with PWM type motor control signal Factory set : constant torque |
| Electrical connection | Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6 terminal 0.00 in² (2.5 mm²) AWG 14 L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- terminal 0.04 in² (25 mm²) AWG 3 |
| Supply | Internal supply for logic inputs 19...30 V 100 mA overload and short-circuit protection Internal supply for reference potentiometer (2.2 to 10 kOhm) 10...10.8 V 10 mA overload and short-circuit protection |
| communication port protocol | Modbus CANopen |
| IP degree of protection | IP20 on upper part without cover plate IP21 on connection terminals IP31 on upper part IP41 on upper part |
| Option card | Communication card CANopen daisy chain Communication card DeviceNet Communication card Fipio Communication card Modbus TCP Communication card Profibus DP |
