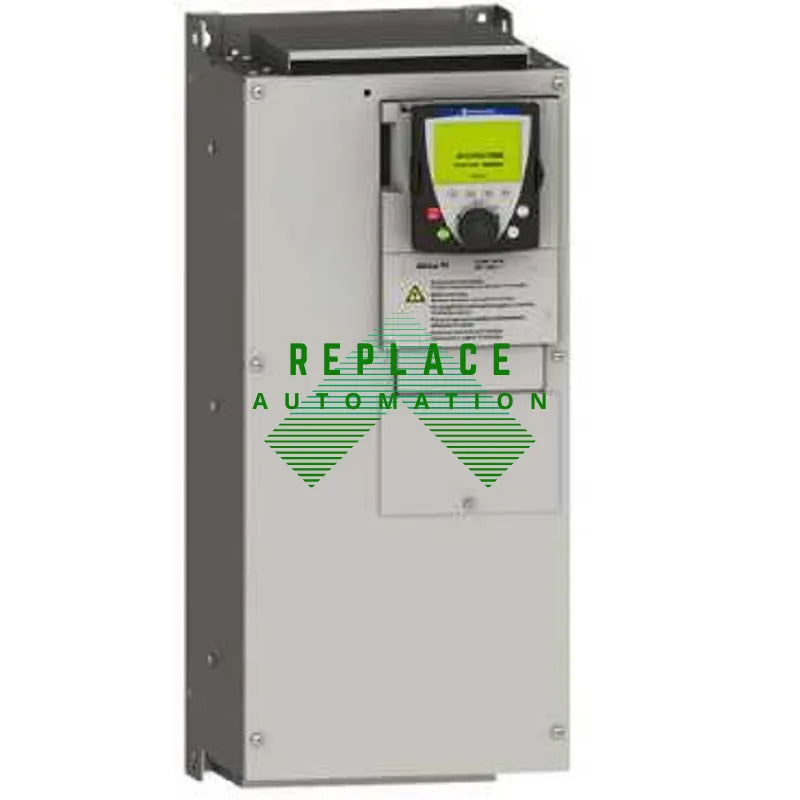

Schneider Electric ATV61HD30N4
The ATV61HD30N4 is a 40 HP Altivar 61 variable speed drive designed for 3-phase motors with a power supply of 380 to 480 V. It features an EMC IP20 filter, graphic terminal, and is suited for pumping and ventilation applications, offering efficient control and communication options for industrial settings.
| Range of Product | Altivar 61 |
| Product or Component Type | Variable speed drive |
| Product Specific Application | Pumping and ventilation machine |
| Component name | ATV61 |
| Motor power kW | 30 kW, 3 phase 380...480 V |
| Maximum Horse Power Rating | 40 hp, 3 phase 380...480 V |
| power supply voltage | 380...480 V - 15...10 % |
| supply number of phases | 3 phase |
| Line current | 56 A 480 V 3 phase 30 kW / 40 hp 66 A 380 V 3 phase 30 kW / 40 hp |
| EMC filter | Level 3 EMC filter |
| Assembly style | With heat sink |
| Apparent power | 43.4 kVA 380 V 3 phase 30 kW / 40 hp |
| maximum prospective line Isc | 22 kA 3 phase |
| Maximum transient current | 79.2 A 60 s, 3 phase |
| Nominal switching frequency | 12 kHz |
| Switching frequency | 1...16 kHz adjustable 12...16 kHz with derating factor |
| asynchronous motor control | Voltage/frequency ratio, 5 points Voltage/frequency ratio - Energy Saving, quadratic U/f Voltage/frequency ratio, 2 points Flux vector control without sensor, standard |
| Synchronous motor control profile | Vector control without sensor, standard |
| communication port protocol | CANopen Modbus |
| Type of polarization | No impedance Modbus |
| Option card | Communication card APOGEE FLN Communication card BACnet Communication card CC-Link Controller inside programmable card Communication card DeviceNet Communication card EtherNet/IP Communication card Fipio I/O extension card Communication card Interbus-S Communication card LonWorks Communication card METASYS N2 Communication card Modbus Plus Communication card Modbus TCP Communication card Modbus/Uni-Telway Multi-pump card Communication card Profibus DP Communication card Profibus DP V1 |
