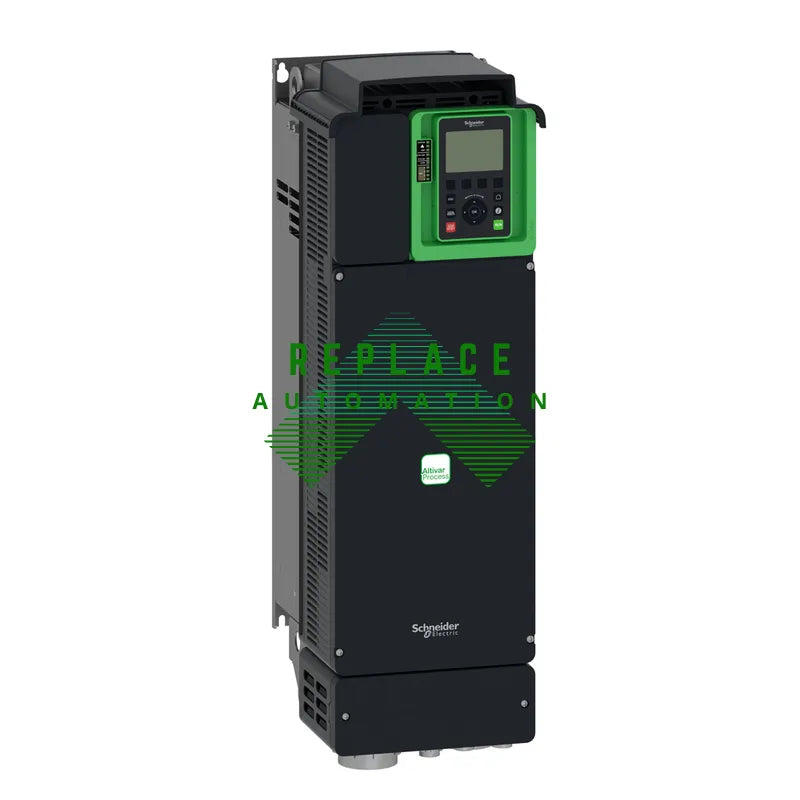

Schneider Electric ATV630D45N4
The ATV630D45N4 is a 45kW, Altivar Process ATV600 series variable speed drive designed for asynchronous and synchronous motors, ranging from 380 to 480V. This standard version features an integrated EMC filter, IP21 and UL type 1 protection, forced convection cooling, and STO safety function, supporting a variety of communication protocols.
| Range of Product | Altivar Process ATV600 |
| Product or Component Type | Variable speed drive |
| Product Specific Application | Process and utilities |
| Device short name | ATV630 |
| variant | Standard version |
| Product destination | Asynchronous motors Synchronous motors |
| EMC filter | Integrated 164.04 ft (50 m) EN/IEC 61800-3 category C2 Integrated 492.13 ft (150 m) EN/IEC 61800-3 category C3 |
| IP degree of protection | IP21IEC 61800-5-1 IP21IEC 60529 |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| Degree of protection | UL type 1 UL 508C |
| Type of cooling | Forced convection |
| Supply frequency | 50...60 Hz - 5...5 % |
| Motor power kW | 45 kW normal duty) 37 kW heavy duty) |
| Maximum Horse Power Rating | 60 hp normal duty 50 hp heavy duty |
| Line current | 79.8 A 380 V normal duty) 69.1 A 480 V normal duty) 67.1 A 380 V heavy duty) 59 A 480 V heavy duty) |
| Prospective line Isc | 50 kA |
| Apparent power | 57.4 kVA 480 V normal duty) 49.1 kVA 480 V heavy duty) |
| Continuous output current | 88 A 4 kHz normal duty 74.5 A 4 kHz heavy duty |
| Asynchronous motor control profile | Optimized torque mode Constant torque standard Variable torque standard |
| Synchronous motor control profile | Permanent magnet motor Synchronous reluctance motor |
| Speed drive output frequency | 0.1…500 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 2...12 kHz adjustable 4...12 kHz with derating factor |
| Safety function | STO (safe torque off) SIL 3 |
| Discrete input logic | 16 preset speeds |
| communication port protocol | Modbus serial Ethernet Modbus TCP |
| Option card | Slot A communication module, Profibus DP V1 Slot A communication module, PROFINET Slot A communication module, DeviceNet Slot A communication module, Modbus TCP/EtherNet/IP Slot A communication module, CANopen daisy chain RJ45 Slot A communication module, CANopen SUB-D 9 Slot A communication module, CANopen screw terminals Slot A/slot B digital and analog I/O extension module Slot A/slot B output relay extension module Slot A communication module, Ethernet IP/Modbus TCP/MD-Link communication module, BACnet MS/TP communication module, Ethernet Powerlink |
