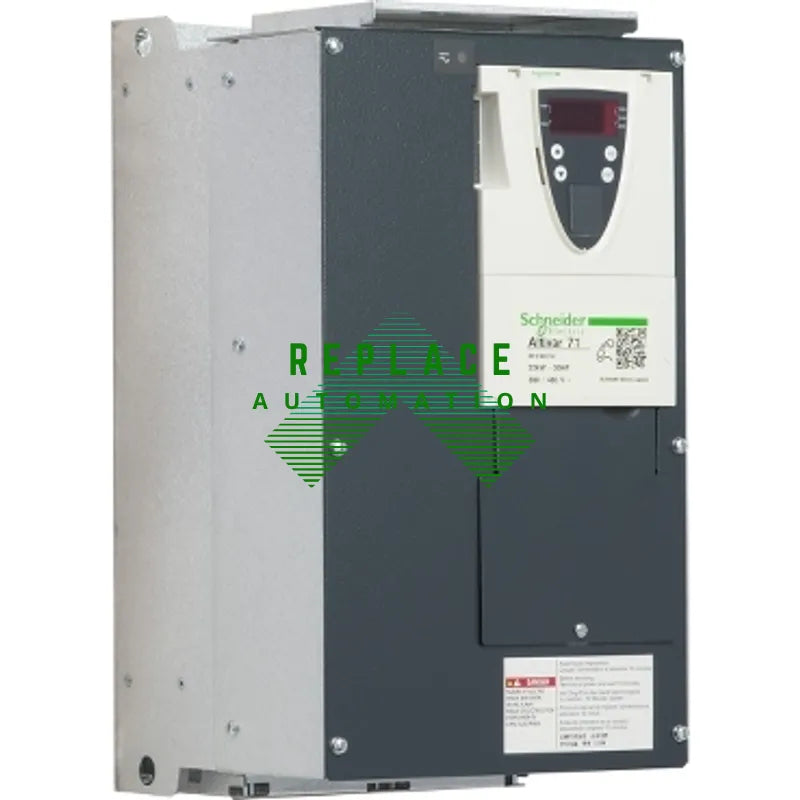

Schneider Electric ATV71HD22N4
The ATV71HD22N4 is a high-performance Altivar 71 variable speed drive, designed for complex machinery, with a 22kW (30HP) motor power and 480V three-phase input. It features an integrated EMC filter, graphic terminal, and supports up to 656 feet of unshielded motor cabling, while offering advanced motor control and seamless Modbus integration.
| Range of Product | Altivar 71 |
| Product or Component Type | Variable speed drive |
| Product Specific Application | Complex, high-power machines |
| Component name | ATV71 |
| Motor power kW | 22 kW, 3 phase 380...480 V |
| Maximum Horse Power Rating | 30 hp, 3 phase 380...480 V |
| Maximum motor cable length | 328.08 ft (100 m) shielded cable 656.17 ft (200 m) unshielded cable |
| power supply voltage | 380...480 V - 15...10 % |
| Phase | 3 phase |
| Line current | 42 A 480 V 3 phase 22 kW / 30 hp 50 A 380 V 3 phase 22 kW / 30 hp |
| EMC filter | Integrated |
| Assembly style | With heat sink |
| Apparent power | 32.9 kVA 380 V 3 phase 22 kW / 30 hp |
| Prospective line Isc | 22 kA 3 phase |
| Nominal output current | 40 A 4 kHz 460 V 3 phase 22 kW / 30 hp 48 A 4 kHz 380 V 3 phase 22 kW / 30 hp |
| Maximum transient current | 72 A 60 s 3 phase 22 kW / 30 hp 79.2 A 2 s 3 phase 22 kW / 30 hp |
| Output frequency | 0.1…599 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 1...16 kHz adjustable 4...16 kHz with derating factor |
| Asynchronous motor control profile | ENA (Energy adaptation) system for unbalanced loads Flux vector control (FVC) with sensor (current vector) Voltage/frequency ratio (2 or 5 points) Sensorless flux vector control (SFVC) (voltage or current vector) |
| Type of polarization | No impedance Modbus |
